UltraView Pro 是专为服务器管理和工业应用而设计的单用户 KVM 切换器，可将系统扩展至最多 256 台计算机。该交换机支持高达 1920 x 1200 的视频分辨率，并且可以将 PC、UNIX、Sun 或 Apple 键盘和鼠标信号转换到任何平台。多平台型号还将支持音频和串行触摸屏。可以购买定制电缆以支持所需的各种接口。该装置易于安装，具有强大的 OSD 用于配置和计算机选择。您可以提前设置设备，这样您就可以在不关闭服务器和/或计算机电源的情况下安装设备。

UltraView Pro 采用坚固的金属机箱，非常适用于需要将电缆拧紧到开关上并且可以将电磁干扰降至最低的工业和危险应用。

UltraView Pro 可以连接到具有 VGA/PS2 或 VGA/USB 接口或两种类型混合的 PC/服务器。用户站可以是 VGA/USB 或 VGA/PS2，接口由不同的电缆类型提供。

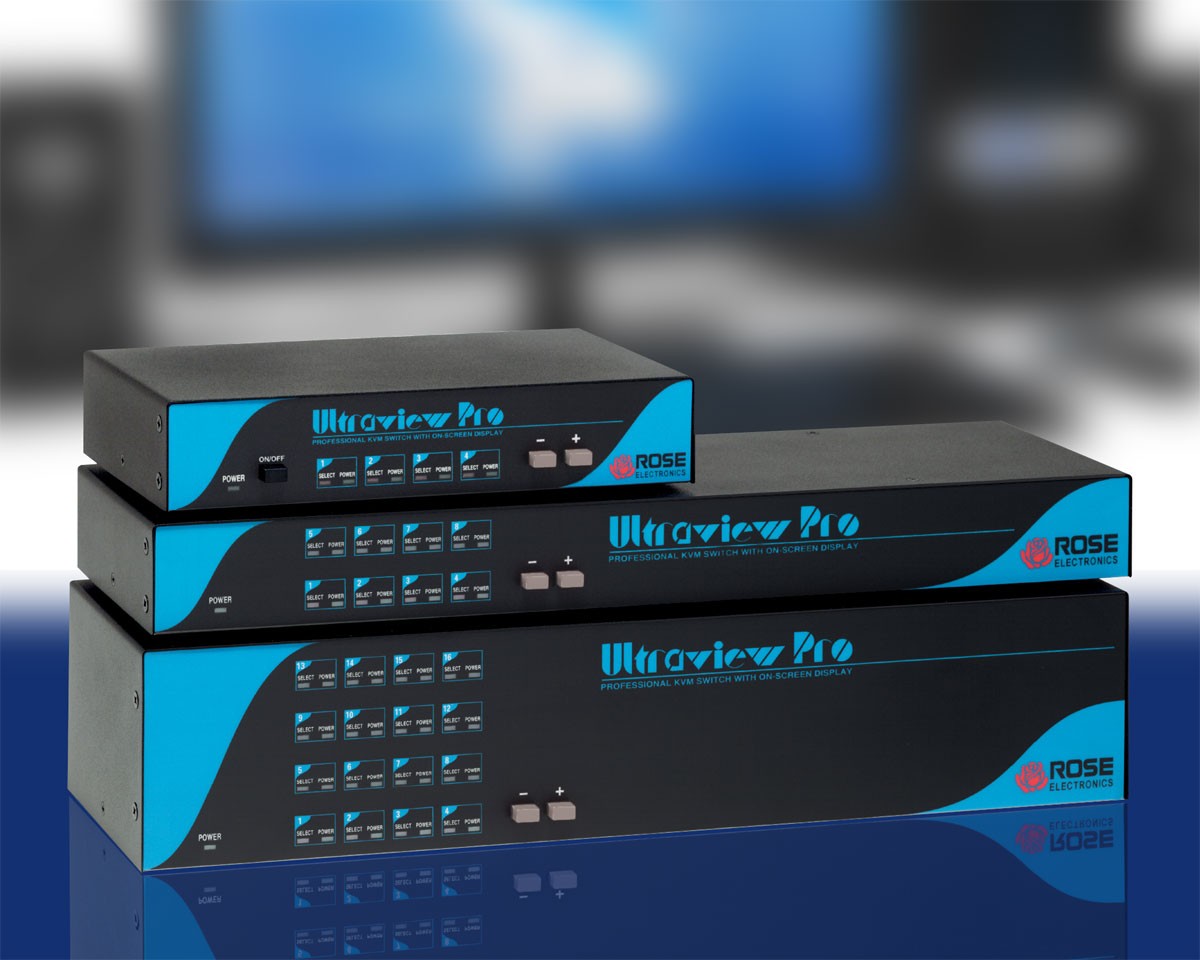

UltraView Pro 提供三种机箱尺寸：

2 或 4 端口 M 机箱
4 或 8 端口 B 机箱
4、8、12 或 16 端口 C 机箱

所有型号都具有链式扩展端口数量的能力。

PART NUMBERS

Product Part Number	Description
UPM-2UB	UltraView Pro, 1x2 KVM Switch, PC-UNIX, OSD, M Chassis 1U
UPM-4UB	UltraView Pro, 1x4 KVM Switch, PC-UNIX, OSD, M Chassis 1U
UPB-4UB	UltraView Pro, 1x4 KVM Switch, PC-UNIX, OSD, B Chassis 1U
UPB-8UB	UltraView Pro, 1x8 KVM Switch, PC-UNIX, OSD, B Chassis 1U
UPC-16UB	UltraView Pro, 1x16 KVM Switch, PC-UNIX, OSD, C Chassis 2U
UEM-2UB	UltraView Pro, 1x2 KVM Switch, Multi-Platform, OSD, M Chassis 1U
UEM-4UB	UltraView Pro, 1x4 KVM Switch, Multi-Platform, OSD, M Chassis 1U
UEB-4UB	UltraView Pro, 1x4 KVM Switch, Multi-Platform, OSD, B Chassis 1U
UEB-8UB	UltraView Pro, 1x8 KVM Switch, Multi-Platform, OSD, B Chassis 1U
UEC-16UB	UltraView Pro, 1x16 KVM Switch, Multi-Platform, OSD, C Chassis 2U
RM-UMxx	Rack Mount kit, 1U, M Chassis (xx = 19", 23", or 24")
RM-UBxx	Rack Mount kit, 1U, B Chassis (xx = 19", 23", or 24")
RM-UCxx	Rack mount kit, 2U, C Chassis (xx = 19", 23", or 24")
Cable Part Number	Description
CAB-ZX0606Mnnn	UltraCable, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-ZX0606Cnnn	UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Mnnn	UltraCable Hi-Res, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CX0606Cnnn	UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse
CAB-CXVUSBMnnn	UltraCable Hi-Res, Switch to KVM, DB25M to VGA-USB Keyboard + Mouse
CAB-CXUSBCnnn	UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse
CAB-CXAV0400Mnnn	UltraCable Hi-Res, Switch to Apple KVM, DB25M to DB15F-ADB Keyboard + Mouse
CAB-C1V0400Mnnn	UltraCable Hi-Res, Switch to Apple KVM, DB25M to VGA-ADB Keyboard + Mouse
CAB-3W30606Mnnn	UltraCable Hi-Res, Switch to RS6000 KVM, DB25M to 3W3F-PS/2 Keyboard + Mouse
CAB-R13W30606Mnnn	UltraCable Hi-Res, Switch to RS6000 KVM, DB25M to 13W3F-PS/2 Keyboard + Mouse
CAB-S13W30606Mnnn	UltraCable Hi-Res, Switch to SGI KVM, DB25M to 13W3F-PS/2 Keyboard + Mouse
CAB-RGBHV0606Mnnn	UltraCable Hi-Res, Switch to RGB KVM, DB25M to RGBHV-PS/2 Keyboard + Mouse
CAB-CXVSMMnnn	UltraCable Hi-Res, Switch to Switch, DB25M to DB25M
CAB-CXAV0400Cnnn	UltraCable Hi-Res, Apple to Switch, DB25M to DB15M-ADB Keyboard + Mouse
CAB-C1V0400Cnnn	UltraCable Hi-Res, Apple to Switch, DB25M to VGA-ADB Keyboard + Mouse
CAB-3W30606Cnnn	UltraCable Hi-Res, RS6000 to Switch, DB25M to 3W3M -PS/2 Keyboard + Mouse
CAB-R13W30606Cnnn	UltraCable Hi-Res, RS6000 to Switch, DB25M to 13W3M -PS/2 Keyboard + Mouse
CAB-S13W30606Cnnn	UltraCable Hi-Res, SGI to Switch, DB25M to 13W3M -PS/2 Keyboard + Mouse
Cables - Audio Application	Description
CAB-ZX0606MAnnn	UltraCable, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio
CAB-ZX0606CAnnn	UltraCable, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio
CAB-CX0606MAnnn	UltraCable Hi-Res, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio
CAB-CX0606CAnnn	UltraCable Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Stereo Audio
CAB-CXVUSBMAnnn	UltraCable Hi-Res, Switch to KVM, DB25M to VGA-USB Keyboard + Mouse-Stereo Audio
CAB-CXUSBCAnnn	UltraCable Hi-Res, USB to Switch, DB25M to VGA-USB Keyboard + Mouse-Stereo Audio
Cables - Serial Application	Description
CAB-C1V060609Cnnn/S3	Hi-Res, PC to Switch, DB25M to VGA-PS/2 Keyboard + Mouse-Serial Touch Screen
CAB-C1V060609Mnnn/S3	Hi-Res, Switch to KVM, DB25M to VGA-PS/2 Keyboard + Mouse-Serial Touch Screen
ACC-D9MF-PCSW	Enables (DB9 serial) touchscreen signals to pass through the switch to the touchscreen (Install between the Switch and the Touchscreen)
ACC-D9MF-CVTS	Enables (DB9 serial) touchscreen signals to pass through the switch and the CrystalView to the touchscreen (Install between the remote CrystalView Extender and Monitor)
Cables - SUN Application	Description
CAB-CXV0800Cnnn	UltraCable Hi-Res, Sun to Switch, DB25M to VGA-Sun Keyboard + Mouse
CAB-SCX0800Cnnn	UltraCable Hi-Res, Sun to Switch, DB25M to 13W3-Sun Keyboard + Mouse
CAB-CXV0800Mnnn	UltraCable Hi-Res, Switch to Sun KVM, DB25M to VGA-Sun Keyboard + Mouse
CAB-SBX0800Mnnn	UltraCable Hi-Res, Switch to Sun KVM, DB25M to 13W3F-Sun Keyboard + Mouse

Dimensions (W x D x H)	M Chassis: 8.8" x 4.85" x 1.75" (223 x 123 x 44.5 mm) (1U) B chassis: 16.7" x 4.85" x 1.75" (424 x 123 x 44.5 mm) (1U) C chassis: 16.7" x 4.85" x 3.5" (424 x 123 x 89 mm) (2U)
Weight	M Chassis: 4 lb (1.8 kg) B chassis: 6 lb (2.7 kg) C chassis: 8 lb (3.6 kg)
Power	90-240 VAC 50-60Hz M chassis: External adapter, +5V, 2A B/C-chassis: Internal M Chassis: 15W B chassis: 25W C chassis: 30W
Resolution	VGA: 1920 x 1200
Distance	CPU/KVM: 25 feet (7.6m)
Connectors	Power: 8-16 port: IEC320, 4-port: DIN5 CPU/KVM: DB25F RS232: RJ 6-conductor
Controls	Computer selection: OSD, front panel, hot-key, serial port Unit Power: Green LED CPU power: Green LED per port CPU select: Red LED per port Prev computer: Push-button - Next computer: Push-button +
Environment	Operating temperature: 32°F–113°F (0°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 5%–80%, non-condensing
