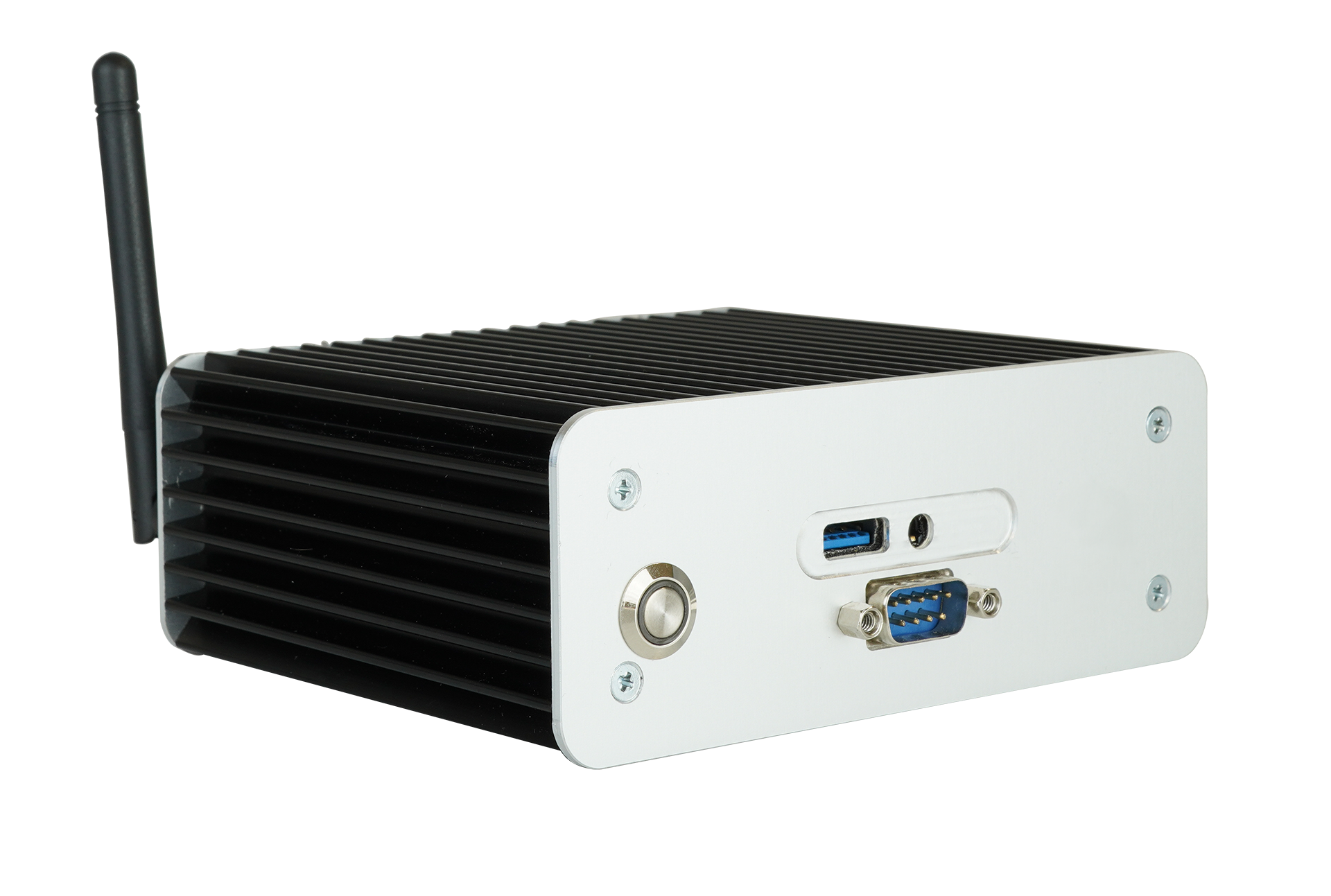

Silence XS-M

Prozessor

Intel 8th Gen. (Whiskey Lake-U) Core? MCP Przessors I5-8365UE QC, 1,6 GHz, 15W (NUC-8365UE)

Mainboard

NUC 4,09“ x 4,02“ (104 x 102mm)

RAM

4 to 32GB DDR4 ECC / non-ECC

Hard drive

1 x Key M with PCIe x4 and SATA3 for SSD, 1x Key E with PCIe x1 and USB 2.0 for Wireless

Graphics card

Intel® Gen9 Graphics DX 12

Compatible OS

MS Windows 10, MS Windows 10 IoT Embedded Enterprise, Ubuntu Linux
(Further compatibilities on request)

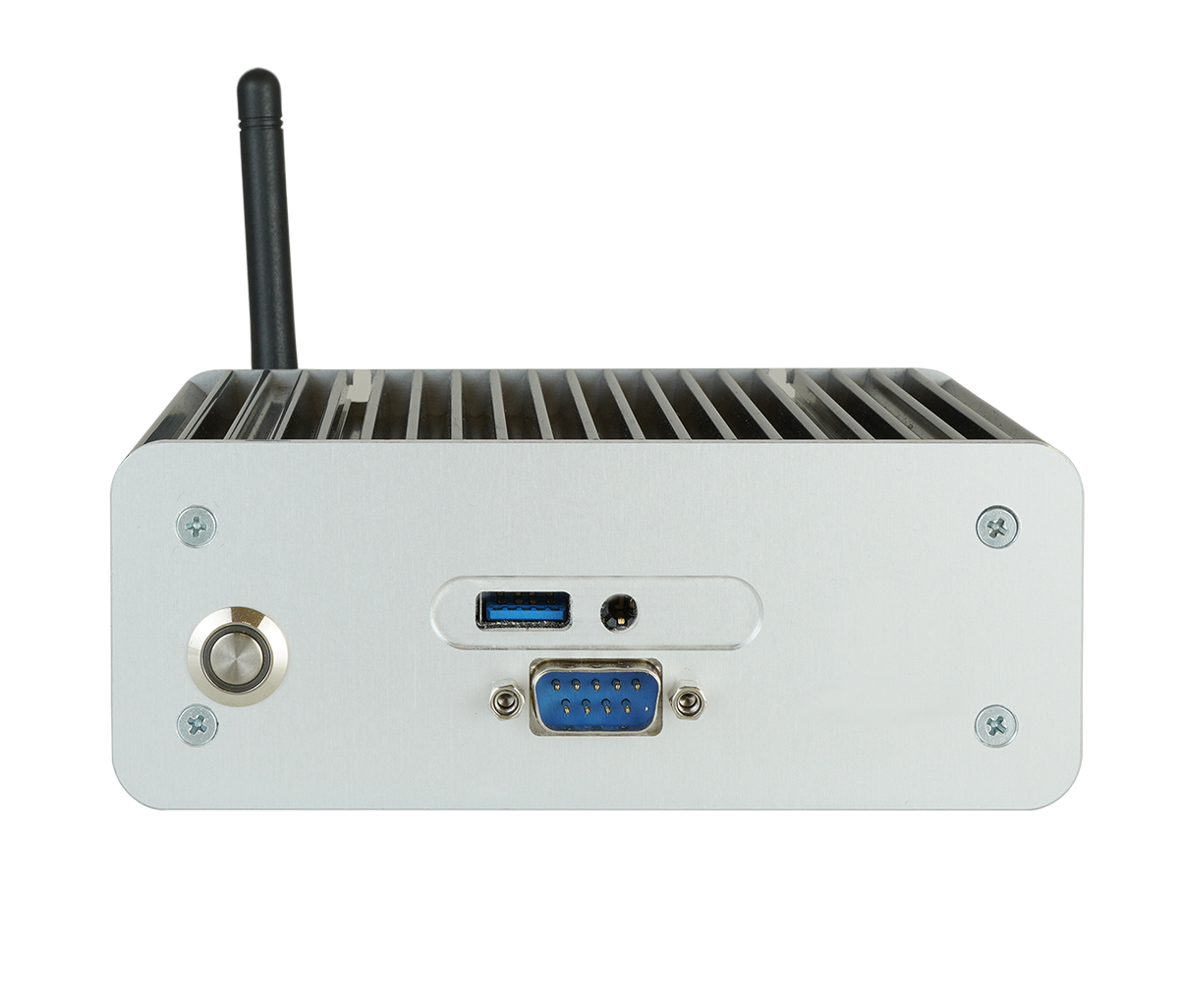

External interfaces (Front)

1x USB 3.2 (gen2), 1x Mic-In / Line-Out, 1x RS232/422/485

External interfaces (Back)

1xHDMI, 2 X Displayport, 2 X RJ45 10/100/100 Mbps (1x Intel I219LM, 1 x Realtek RTL 8111G)
2x USB 3.1

WLAN

Intel 802.11 b/g/n/ac Dual-Band WLAN Modul / Bluetooth 4,2

Medical power supply unit

Output: 12V/60W

Cooling system

Heatpipe cooling system, directly attached to the housing

Case

Full aluminum heat sink profile housing, black anodized

Dimensions

134x108x55 mm (BxTxH)

Mounting options

DIN rail DIN bracket / wall bracket, bracket for 19 inch rack

Weight

1,2 kg

Ambient temperature

0°C bis +40°C (in operation)

Humidity

90% rel. humidity

Protection class

IP60

Conformity

CE, RoHS, IEC 60601-1-2:2014

Item no.

2012396
