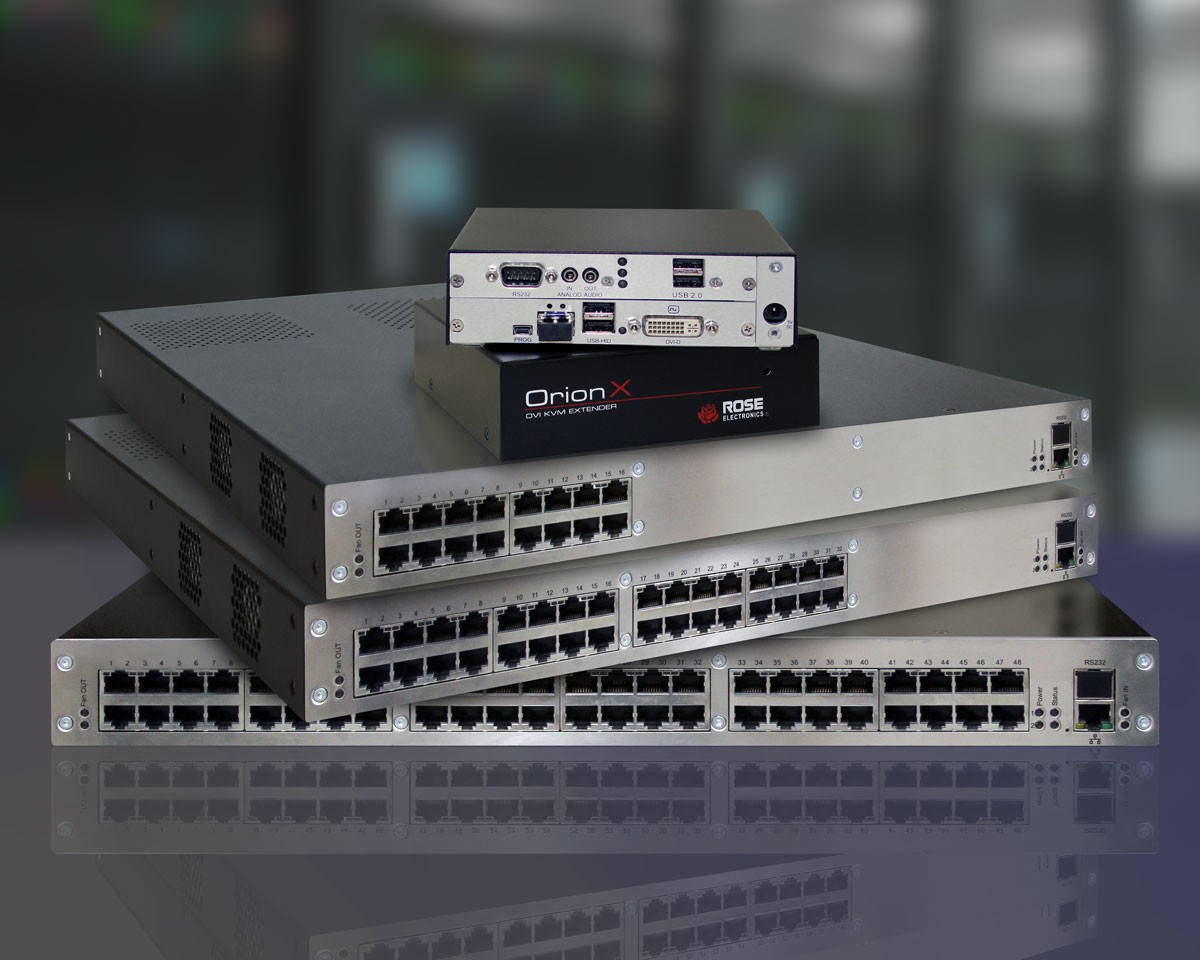

Orion XC提供了非常清晰的视频，用于在用户和计算资源之间建立连接的平台上实现视觉无损。一系列具有混合信号格式的Orion TX发送器和接收器 RX设备便于对交换机进行I / O访问，可在连接时自动识别和配置每个设备。

Orion XC交换机和外部扩展设备可以是全CATx，权光纤，或CATx和光纤的混合，具体取决于交换机端口密度。同轴接口也支持SDI / SD / HD / 3G。根据所选的发送器和接收器接口，可以通过Orion XC切换和扩展一系列通用用户和PC外围设备。该系列包括高达480Mbps的全速和高速USB2.0外设，高达5Gbps的USB3.0，串行RS232 / RS422，模拟或平衡音频和数字音频。自动支持USB-HID，用于键盘和鼠标，USB触摸屏和其他USB指定设备。

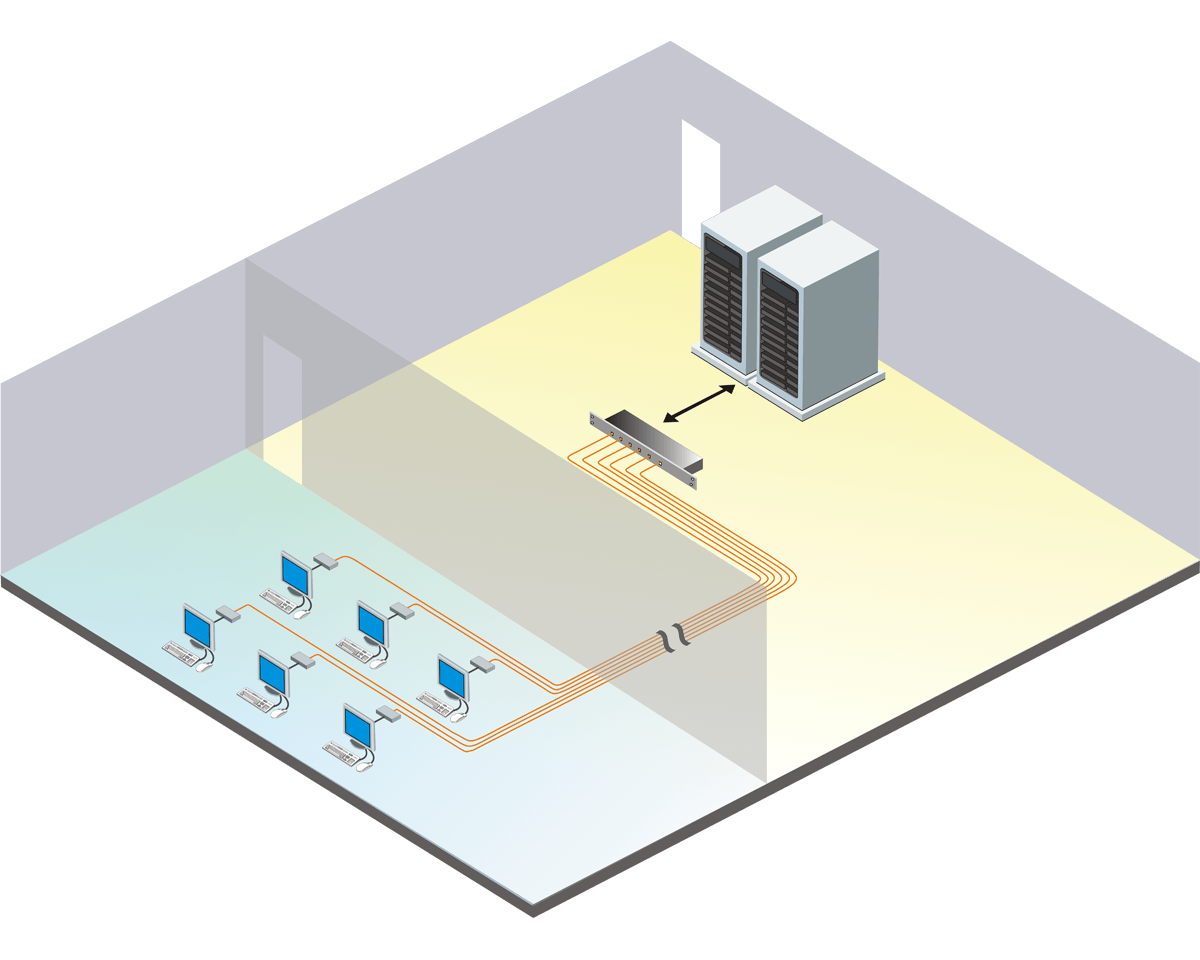

扩展Orion XC安装不是问题。随附的Matrix Grid软件通过CATx或光纤连接线自动化多矩阵连接。通过这种方式，可以将更多I / O端口添加到现有系统或远程用户，并且可以将资源连接回中央系统。

Dimensions (W x D x H)	80-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U) 64-port: 17.4" x 17.1" x 3.5" (443 x 435 x 89 mm) (2U) 48-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 32-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 16-port: 17.4" x 17.1" x 1.75" (443 x 435 x 44.5 mm) (1U) 8-port: 8.7" x 5.7" x 1.75" (220 x 146 x 44.5 mm) (1U)
Weight	80-port: 15.9 lb (7.2 kg) 64-port: 15.9 lb (7.2 kg) 48-port: 9 lb (4.1 kg) 32-port: 8.8 lb (4 kg) 16-port: 8.6 lb (3.9 kg) 8-port: 1.9 lb (0.9 kg)

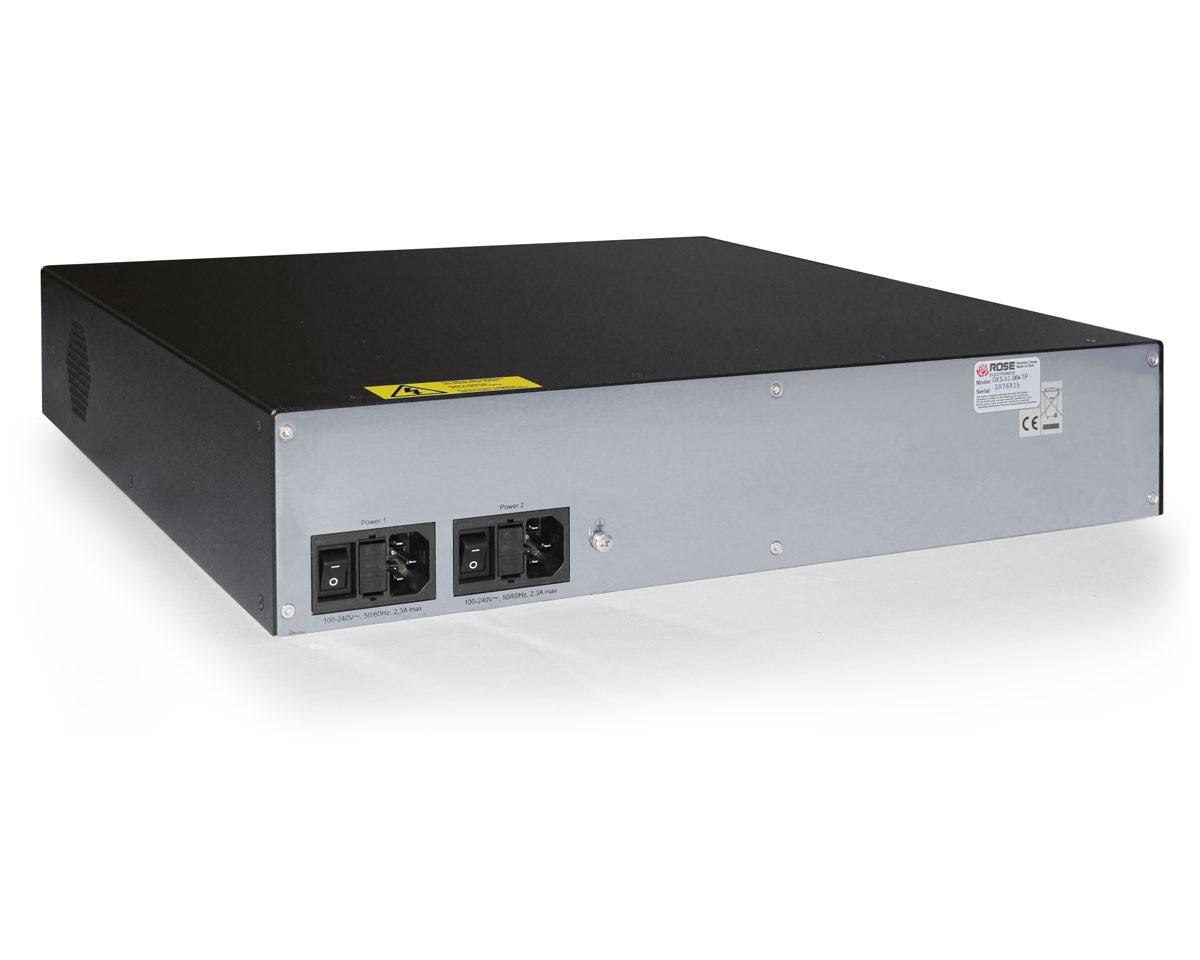

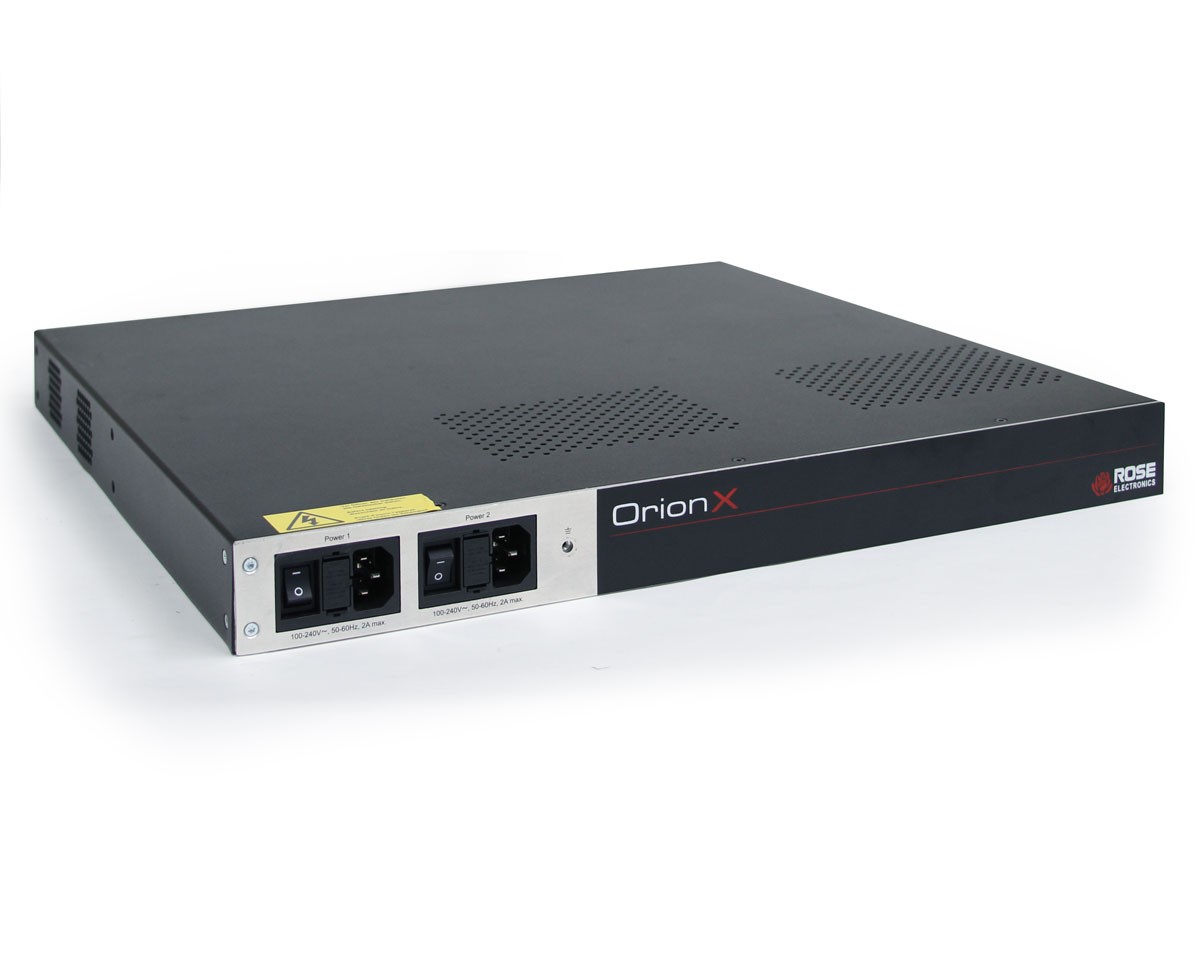

Power	90-240 VAC 50-60 Hz Optional redundant PSU 80-port: 125W 64-port: 115W 48-port: 90W 32-port: 65W 16-port: 40W 8-port: 13W
Resolution	DVI single-link video: 1920 x 1200/2048 x 1152 DVI dual-link video: 2560 x 2048, 4096 x 2160, 3840 x 2160 Full color depth, 24-bit (4:4:4) VGA video: 1920 x 1200 HDMI video: 1080p, 1920 x 1200 DisplayPort video: 1920 x 1200, 2560 x 2048, 3840 x 2160 SDI: per SMPTE spec up to 3G
Distance	CATx: 460? (140m) Multi-mode fiber: (62.5?): 650? (200m) Multi-mode fiber: (50?): 1,300? (400m) Multi-mode fiber: (50?) OM3: 3,300? (1Km) Single-mode fiber: (9?): 33,000? (10Km)
Connectors	Transmitters/receivers: Dual LC fiber or CATx SD/HD/3G-SDI:Mini coax replaces fiber SFP Ethernet control port: RJ45 jack RS232 control port: RJ45 jack Power: IEC-320 receptacle
Controls	On-screen display (at each KVM station) Web, FTP, Telnet, SMTP, Serial, IR Multi-screen control (one KB/Mouse controls up to 4 monitors)
Environment	Operating temperature: 41°F–113°F (5°C–45°C) Storage temperature: -13°F–140°F (-25°C–60°C) Relative humidity: 0%–80%, non-condensing

PART NUMBERS

Orion XC Switch — CATX PORTS

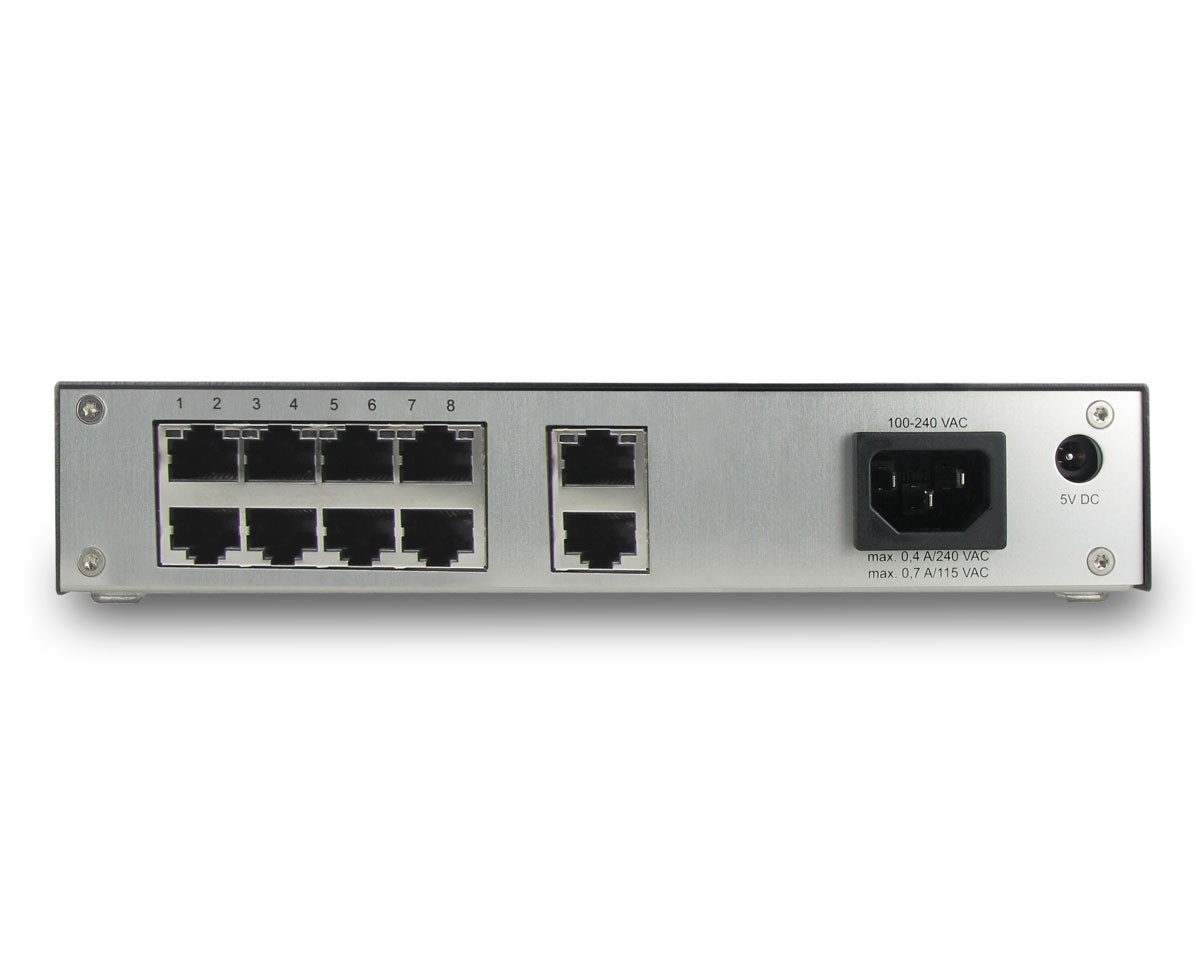

OXS-XC008-TP	Orion XC 8 port matrix switch, CATx, with IEC power and redundant +5V power jack, 1U
OXS-XC016-TP	Orion XC 16 port matrix switch, redundant PSU, CATx, 1U
OXS-XC032-TP	Orion XC 32 port matrix switch, redundant PSU, CATx, 1U
OXS-XC048-TP	Orion XC 48 port matrix switch, redundant PSU, CATx, 1U

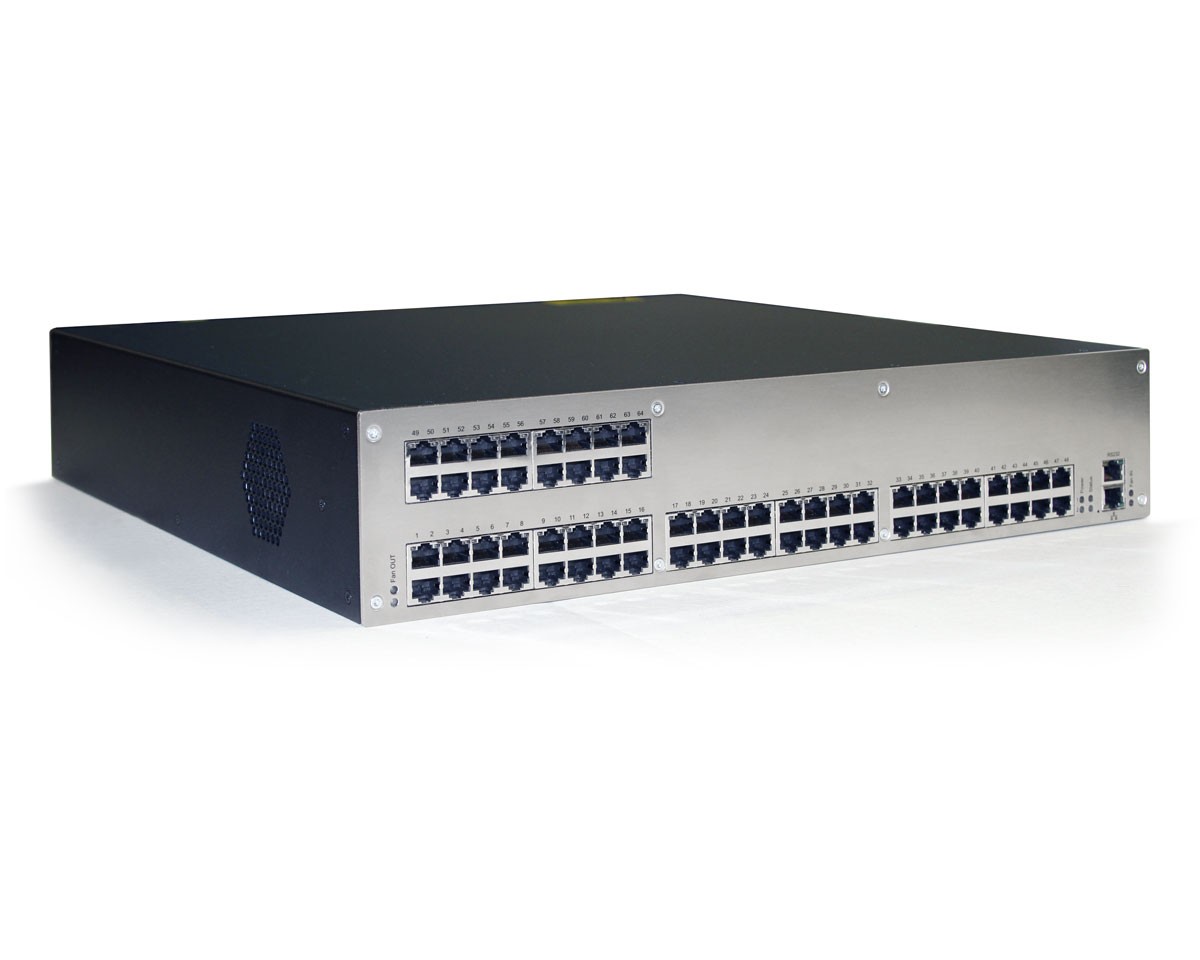

OXS-XC064-TP	Orion XC 64 port matrix switch, redundant PSU, CATx, 2U

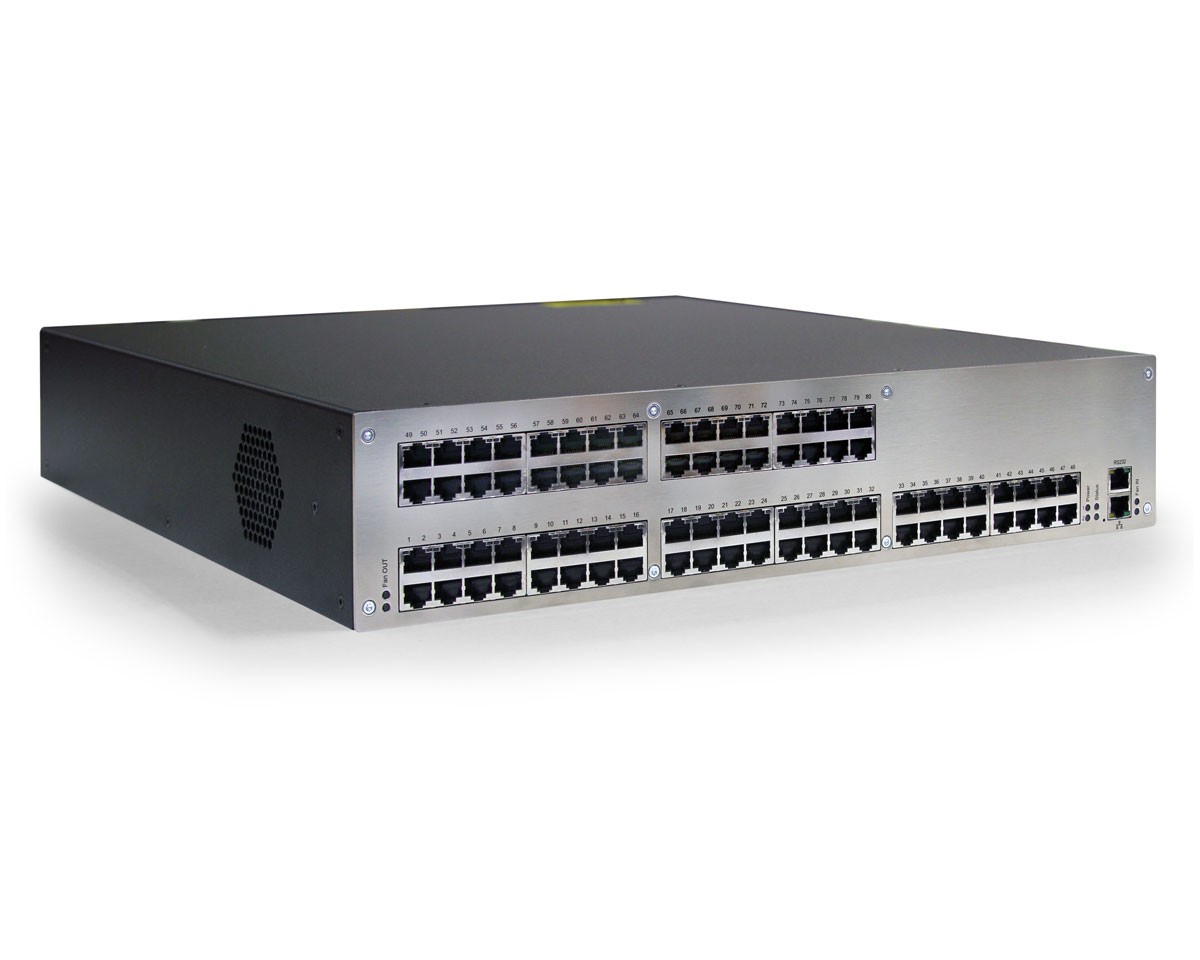

OXS-XC080-TP	Orion XC 80 port matrix switch, redundant PSU, CATx, 2U
Orion XC Switch — FIBER PORTS
OXS-XC008-FS	Orion XC 8 port matrix switch, 1G Fiber SM, with IEC power and redundant +5V power jack, 1U
OXS-XC016-FS	Orion XC 16 port matrix switch, redundant PSU, 1G Fiber SM, 1U
OXS-XC032-FS	Orion XC 32 port matrix switch, redundant PSU, 1G Fiber SM, 1U
OXS-XC048-FS	Orion XC 48 port matrix switch, redundant PSU, 1G Fiber SM, 1U
OXS-XC064-FS	Orion XC 64 port matrix switch, redundant PSU, 1G Fiber SM, 2U
OXS-XC080-FS	Orion XC 80 port matrix switch, redundant PSU, 1G Fiber SM, 2U
OXS-XC008-F3	Orion XC 8 port matrix switch, 2.5G Fiber SM, with IEC power and redundant +5V power jack, 1U
OXS-XC016-F3	Orion XC 16 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U
OXS-XC032-F3	Orion XC 32 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U
OXS-XC048-F3	Orion XC 48 port matrix switch, redundant PSU, 2.5G Fiber SM, 1U
OXS-XC064-F3	Orion XC 64 port matrix switch, redundant PSU, 2.5G Fiber SM, 2U
OXS-XC080-F3	Orion XC 80 port matrix switch, redundant PSU, 2.5G Fiber SM, 2U
Orion XC Switch — UNIVERSAL PORTS
OXS-XC008-UN	Orion XC 8 port matrix switch, Universal Ports, with IEC power and redundant +5V power jack, 1U
OXS-XC016-UN	Orion XC 16 port matrix switch, redundant PSU, Universal Ports, 1U
OXS-XC032-UN	Orion XC 32 port matrix switch, redundant PSU, Universal Ports, 1U
OXS-XC048-UN	Orion XC 48 port matrix switch, redundant PSU, Universal Ports, 1U
Orion XC Switch — MIXED CATX + FIBER PORTS

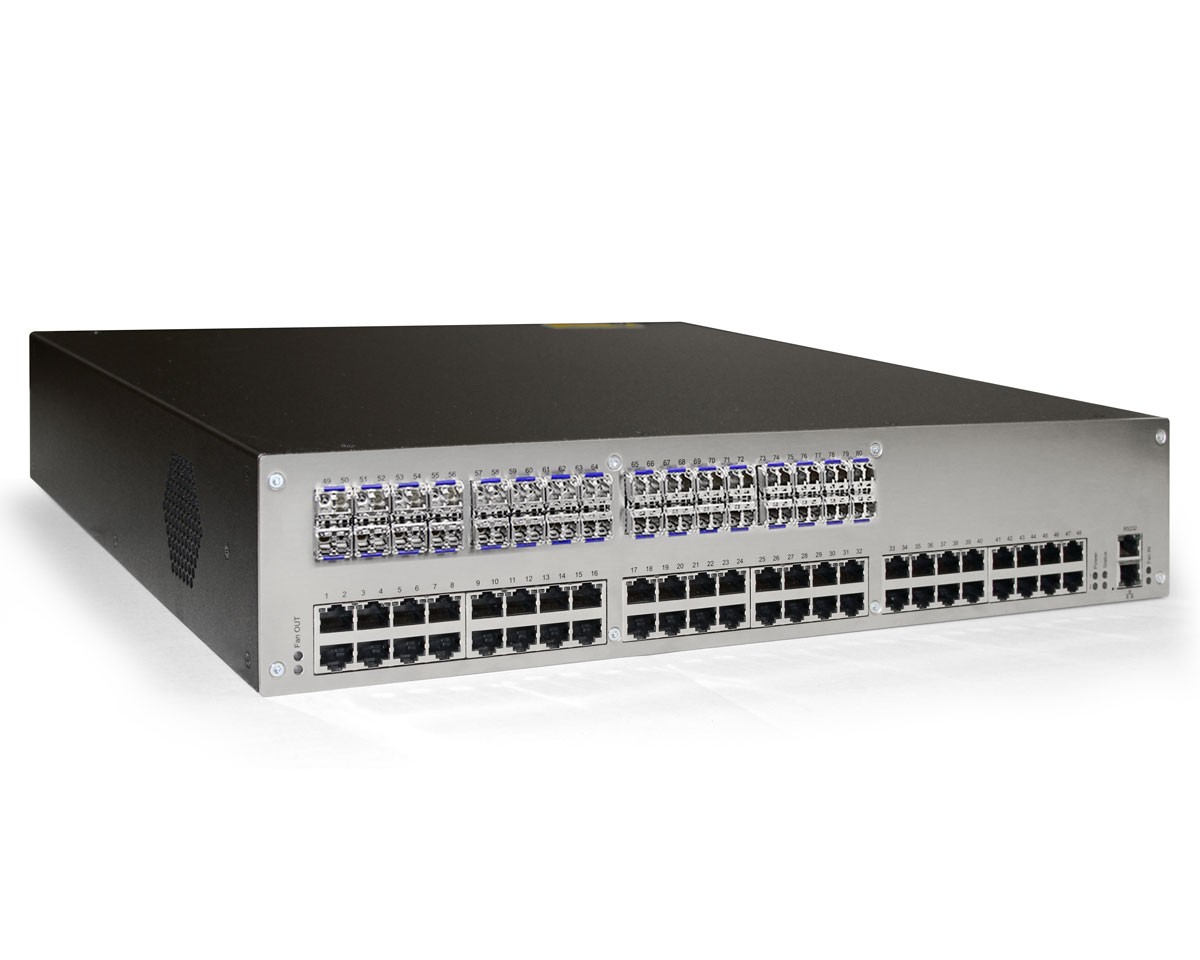

OXS-XC48TP16FS	Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x 1G Fiber SM, 2U
OXS-XC48TP32FS	Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x 1G Fiber SM, 2U
OXS-XC48TP16F3	Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x 2.5G Fiber SM, 2U
OXS-XC48TP32F3	Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x 2.5G Fiber SM, 2U
Orion XC Switch — MIXED CATX + UNIVERSAL PORTS
OXS-XC48TP16UN	Orion XC 64 port matrix switch, redundant PSU, 48 x CATx, 16 x Universal Ports, 2U
OXS-XC48TP32UN	Orion XC 80 port matrix switch, redundant PSU, 48 x CATx, 32 x Universal Ports, 2U
Orion XC Switch — MIXED FIBER + UNIVERSAL PORTS
OXS-XC48FS16UN	Orion XC 64 port matrix switch, redundant PSU, 48 x 1G Fiber SM, 16 x Universal Ports, 2U
OXS-XC48FS32UN	Orion XC 80 port matrix switch, redundant PSU, 48 x 1G Fiber SM, 32 x Universal Ports, 2U

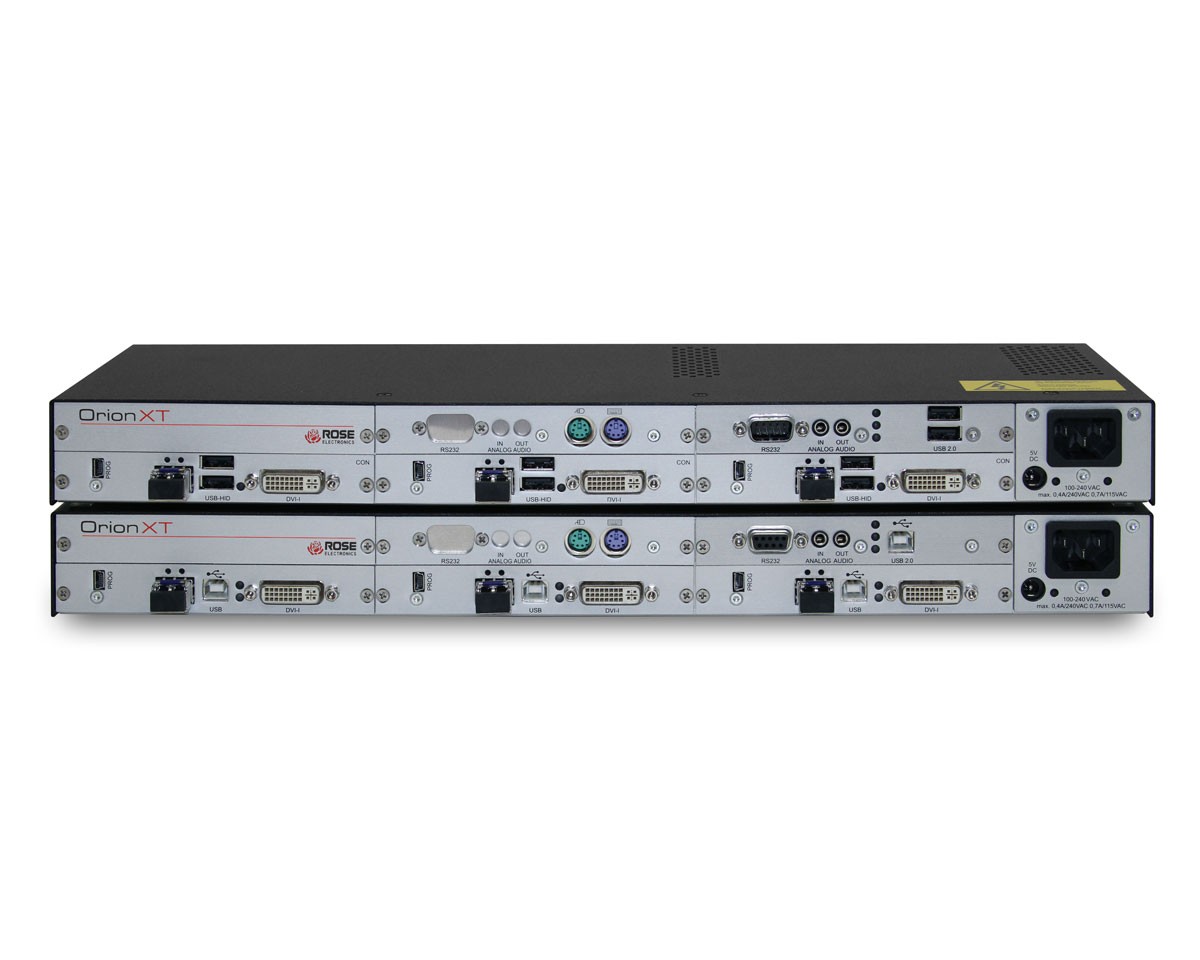

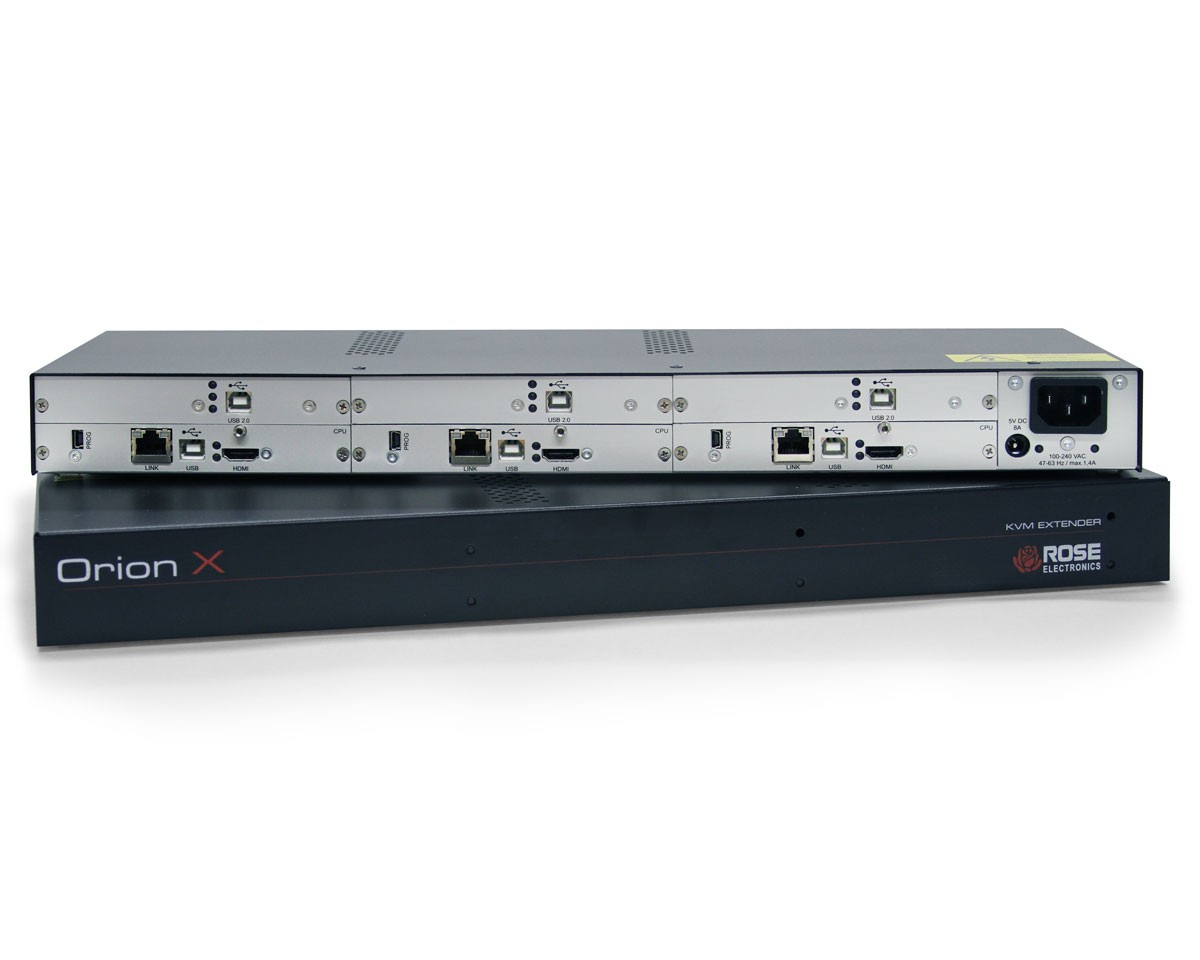

Orion XC Switch— CARDS for insertion into 6-bay or 21-bay Orion XTender chassis
OXS-XC008-TP/IRK	Orion XC 8 ports (card version), CATx
OXS-XC008-FS/IRK	Orion XC 8 ports (card version), 1G Fiber SM
OXS-XC008-F3/IRK	Orion XC 8 ports (card version), 2.5G Fiber SM
OXS-XC008-UN/IRK	Orion XC 8 ports (card version), Universal Ports

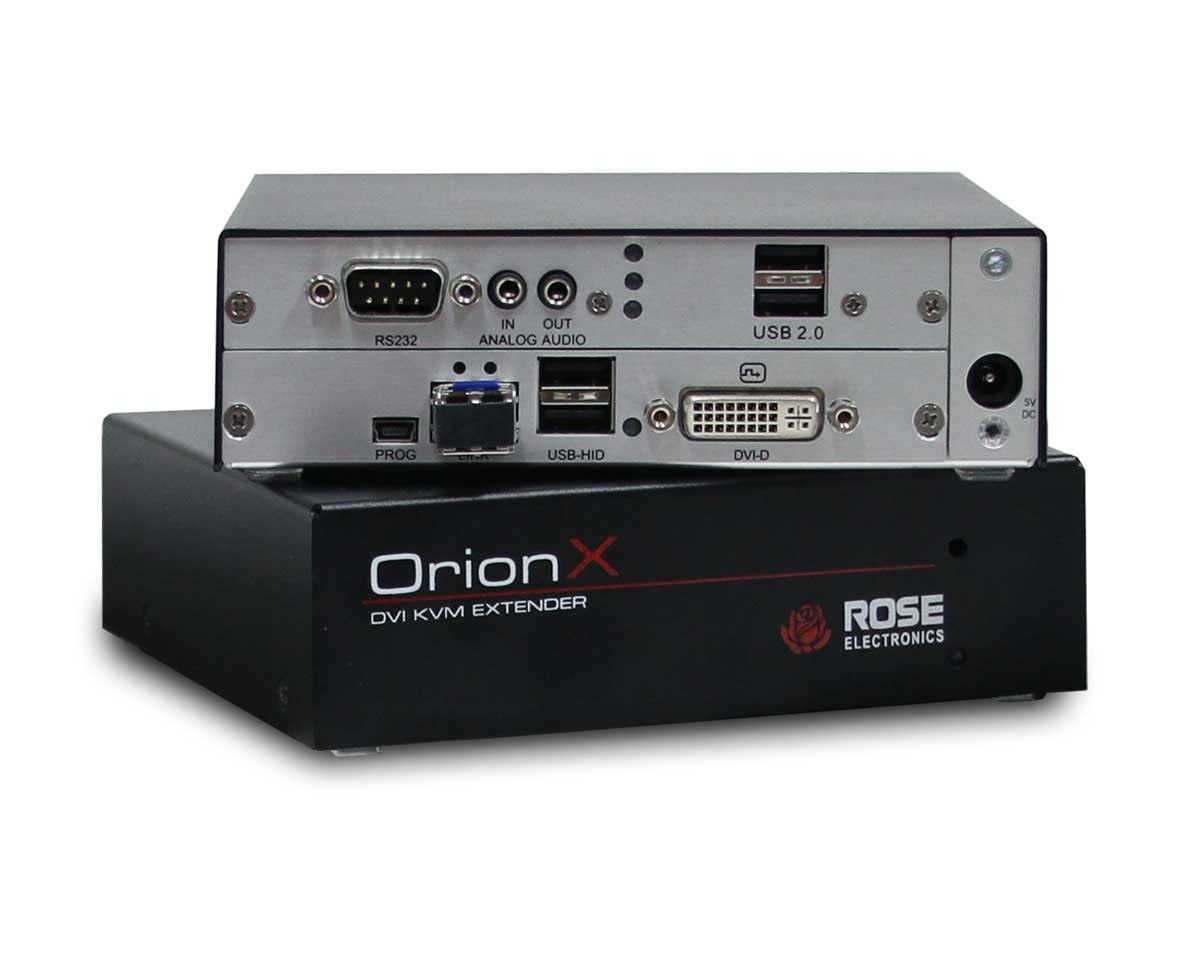

Orion X Receivers – CATx
OR2-SRDTXUD1D	DVI-D, USB HID
OR2-SRDTXTD1D	DVI-D, USB HID, USB 2.0
OR2-SRDTXUS1V	DVI-I (VGA, no scaling), USB HID
OR2-SRDTXTD1V	DVI-I (VGA, with scaling), USB HID
OR2-SRDTXUH1H	HDMI, USB HID
OR2-SRDTXUD1D/AUD	DVI-D, USB HID, Audio, Serial
OR4-SRDTXTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OR4-SRDTXTD2D/AUD	Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Receivers – Fiber single-mode (supports Single-Mode and Multi-Mode Fiber)
OR2-SRDFSUD1D	DVI-D, USB HID
OR2-SRDFSTD1D	DVI-D, USB HID, USB 2.0
OR2-SRDFSUD1D/AUD	DVI-D, USB HID, Audio, Serial
OR4-SRDFSTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
Orion X Transmitters – CATx
OT2-SLDTXUD1D	DVI-D, USB HID
OT2-SLDTXUS1V	DVI-I (VGA, no scaling), USB HID
OT2-SLDTXUD1V	DVI-I (VGA, with scaling), USB HID
OT4-SLDTXTD1V	DVI-I (VGA, with scaling), USB USB 2.0, HID
OT2-SLDTXTD1D	DVI-D, USB HID, USB 2.0
OT4-SLDTXTD1V	DVI-I (VGA), USB USB 2.0, HID
OT2-SLDTXUD1D/AUD	DVI-D, USB HID, Audio, Serial
OT4-SLDTXUD1V/AUD	DVI-I (VGA), USB HID, Audio, Serial
OT4-SLDTXTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDTXTD2D/AUD	Dual-head DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDTXTD1V/AUD	DVI-I (VGA), USB USB 2.0, HID, Audio, Serial

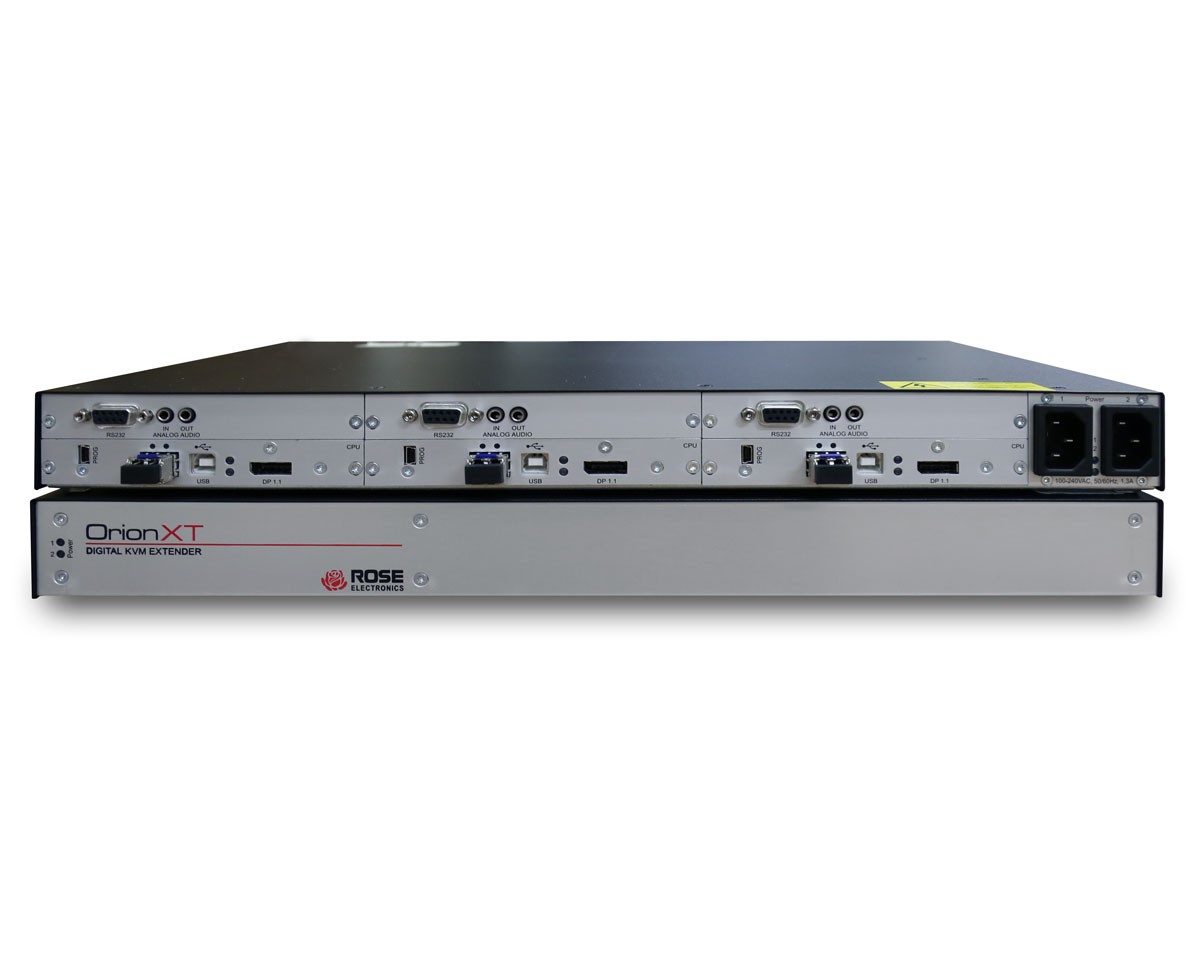

Orion X Transmitters – Fiber single-mode (supports Single-Mode and Multi-Mode Fiber)
OT2-SLDFSUD1D	DVI-D, USB HID
OT2-SLDFSUD1V	DVI-I (VGA), USB HID
OT2-SLDFSTD1D	DVI-D, USB HID, USB 2.0
OT4-SLDFSTD1V	DVI-I (VGA), USB HID, USB 2.0
OT2-SLDFSUD1D/AUD	DVI-D, USB HID, Audio, Serial
OT4-SLDFSUD1V/AUD	DVI-I (VGA), USB HID, Audio, Serial
OT4-SLDFSTD1D/AUD	DVI-D, USB HID, USB 2.0, Audio, Serial
OT4-SLDFSTD1V/AUD	DVI-I (VGA), USB HID, USB 2.0, Audio, Serial
Transmitters and receivers are partial list, see Orion Xtender data sheet for full information
