IOLAN SDG-1、2、4、8个软件可选RS232/422/485 串行到以太网设备服务器，10/100/1000M，数据加密、身份认证和事件管理的高级安全特性-上海趋世电子科技有限公司

对于安全的串行到以太网连接应用程序，IOLAN SDG设备服务器是当今市场上最先进的紧凑型产品。 IOLAN SDG以紧凑的尺寸提供高性能，提供了广泛的安全性，灵活性和下一代IPv6技术，使其成为需要远程设备/控制台管理，数据捕获或监视的应用的理想选择。 IOLAN串行设备服务器也可提供集成的V.92调制解调器，支持以太网供电（PoE），1级2区或扩展温度范围。

为何首选IOLAN SDG设备服务器：

功能强大的处理器可提供市场上最佳的吞吐量和性能
TrueSerial®数据包技术可通过以太网提供最可靠的串行连接，以确保串行协议的完整性
网络和串行接口指示灯，便于故障排除
即插即用安装实用程序消除了IP网络上所有IOLAN的配置麻烦
TruePort – Perle的基于串行的应用程序的com / tty重定向器可在Windows，Vista，Linux，Solaris，SCO和Unix上运行
FIPS 140-2 –加密模块符合美国政府NIST要求
串行电缆供电消除了单独电源安装的成本
支持投资保护和网络兼容性的下一代IP支持（IPv6）
紧凑型保护性钢制外壳，适用于桌面，壁挂式或DIN导轨安装
无需Java的浏览器即可通过Telnet和SSH访问远程串行控制台端口
Ping看门狗探头使客户能够在网络设备无响应的情况下，通过连接的Perle RPS电源开关为设备重新通电

IOLAN SDG设备服务器图

安全的串行到以太网连接
IOLAN SDG设备服务器使管理员能够通过IP网络安全地访问PBX，服务器，路由器，网络存储设备和安全设备等设备上的远程串行控制台端口。诸如信用卡持有人信息之类的敏感数据通过诸如Secure Shell（SSH）和Secure Sockets Layer（SSL）之类的标准加密工具得到保护。通过诸如RADIUS，TACACS +，LDAP，Kerberos，NIS和RSA Security的SecurID令牌之类的认证方案，可以确保授权用户的访问。

通过使用加密技术，IOLAN可以在通过公司Intranet或公共Internet发送数据之前，保护来自信用卡读取器等串行设备的敏感和机密数据。为了与对等加密设备兼容，完全支持所有主要加密密码，例如AES，3DES，RC4，RC2和CAST128。

IPSec标准是公认的通过Internet与远程专用网络通信的最安全方法，它在OSI模型的网络层提供了IP数据包的可靠身份验证和加密。作为标准，它是网络内多供应商互操作的理想选择，可提供灵活性以及为特定应用匹配正确解决方案的能力。
IOLAN设备服务器插件
通过选择Perle IOLAN设备服务器，您可以放心，几乎任何带有串行COM端口的设备都可以与所需的应用程序一起正常运行，就像直接连接该设备时一样。万一Perle IOLAN设备服务器未立即启用此功能，Perle将使其正常工作。

Perle IOLAN设备服务器利用客户可安装的“设备插件”成功地使其他解决方案失败的网络设备。立即申请免费的工程咨询。

先进的IP技术
借助对下一代IP（IPv6）的支持，IOLAN串行到以太网设备服务器范围为组织提供了投资保护，以满足该快速增长的标准。

与IPv4寻址方案兼容的IPv6需求是由对更多IP地址的需求所驱动的。随着高级蜂窝网络的实施和推出，需要一种可靠的方法来处理Internet上大量涌入的新IP可寻址设备。实际上，美国国防部已强制要求所有购买的设备必须兼容IPv6。此外，所有主要操作系统，例如Windows，Linux，Unix和Solaris，以及路由器，都对IPv6内置了支持。

因此，对于最终用户和集成商而言，选择包含IPv6标准的网络设备非常重要。已内置支持IPv6的IOLAN线是串行到以太网技术的最佳选择。

灵活可靠的串行到以太网连接
IOLAN SDG设备服务器非常适合将基于串行的COM端口，基于UDP或TCP套接字的应用程序连接到远程设备。 Perle的TruePort重定向器为基于串行的应用程序提供固定的TTY或COM端口，从而能够以加密或明文模式与连接到Perle IOLAN的远程设备进行通信。您还可以跨IP网络在设备之间建立串行数据隧道。

Perle的设备管理软件提供了
集中控制多个设备，从而最大程度地延长了远程设备的正常运行时间。

所有IOLAN SDG型号都通过强大的15Kv ESD保护电路增加了针对静电放电和电涌的保护，使组织能够放心地在现场使用该解决方案。

终身保修
所有Perle IOLAN SDG串行到以太网设备服务器均具有业界最佳的服务和支持，包括Perle独特的终身保修。自1976年以来，Perle一直为客户提供性能，灵活性和质量最高的网络产品。

软件功能 - IOLAN SDG Device Servers

Serial Port Access
	Connect directly using Telnet / SSH by port and IP address
	Connect with EasyPort menu by Telnet / SSH
	Use an internet browser to access with HTTP?or?secure HTTPS via EasyPort Web menu
	Java-free browser access to remote serial console ports via Telnet and SSH
	Ports can be assigned a specific IP address ( aliasing )
	Multisession capability enables multiple users to access ports simultaneously
	Multihost access enables multiple hosts/servers to share serial ports
Accessibility
	In-band ( Ethernet ) and out-of-band ( dial-up modem ) support
	Dynamic DNS enables users to find a console server from anywhere on the Internet
	Domain name control through DHCP option 81
	IPV6 and IPV4 addressing support
Availability
	Primary/Backup host functionality enables automatic connections to alternate host(s)
Security
	SSH v1 and v2
	PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0
	SSL Server and SSL client mode capability
	SSL Peer authentication
	IPSec VPN : NAT Traversal, ESP authentication protocol
	SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305
	SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384
	Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
	Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
	Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
	X.509 Certificate verification: RSA, DSA
	Certificate authority (CA) list
	Local database
	RADIUS Authentication, Authorization and Accounting
	TACACS+ Authentication, Authorization and Accounting
	LDAP, NIS, Kerberos Authentication
	RSA SecureID-agent?or?via RADIUS Authentication
	SNMP v3 Authentication and Encryption support
	IP Address filtering
	Disable unused daemons
	Active Directory via LDAP
Terminal Server
	Telnet
	SSH v1 and v2
	Rlogin
	Auto session login
	LPD, RCP printer
	MOTD - Message of the day
Serial machine to Ethernet
	Tunnel raw serial data across Ethernet - clear?or?encrypted
	Raw serial data over TCP/IP
	Raw serial data over UDP
	Serial data control of packetized data
	Share serial ports with multiple hosts/servers
	Virtual modem simulates a modem connection - assign IP address by AT phone number
	Virtual modem data can be sent over the Ethernet link with?or?without SSL encryption
	TruePort com/tty redirector?for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click?here
	TrueSerial?packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity
	RFC 2217 standard for transport of serial data and RS232 control signals
	Customizable?or?fixed serial baud rates
	Plug-ins allow customer?or?Perle provided plug-ins for special applications
	Software Development Kit ( SDK ) available
	Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101
	ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP
	Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port
Console Management
	Sun / Oracle Solaris Break Safe
	Local port buffer viewing - 256K bytes per port
	External port buffering via NFS, encrypted NFS and Syslog
	Event notification
	Manage AC power of external equipment using Perle RPS power management products
	Clustering - central console server enables access ports across multiple console servers
	Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console
	Ping watchdog probes?enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear
Remote Access
Dial, direct serial	PPP, PAP/CHAP, SLIP
?	HTTP tunneling?enables firewall-safe access to remote serial devices across the internet
Automatic DNS?update?	Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See?Automatic DNS update?support for details
IPSEC VPN client/servers	Microsoft L2TP/IPSEC VPN client ( native to Windows XP)
	Microsoft IPSEC VPN Client ( native to Windows Vista )
	Cisco routers with IPSEC VPN feature set
	Perle IOLAN SDS/STS and SCS models
OA&M ( Operations, Administration and Management )
	SNMP V3 - read and write, Perle MIB
	Syslog
	Perle Device Manager - Windows based utility for large scale deployments
	Configurable default configuration
	Installation Wizard
	Set a Personalized Factory Default for your IOLANs
Protocols
	IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP

硬件规格 - IOLAN SDG Device Servers

Memory
Processor	600 Mhz ARM processor
RAM MB	512
Flash MB	4000
Interface Ports

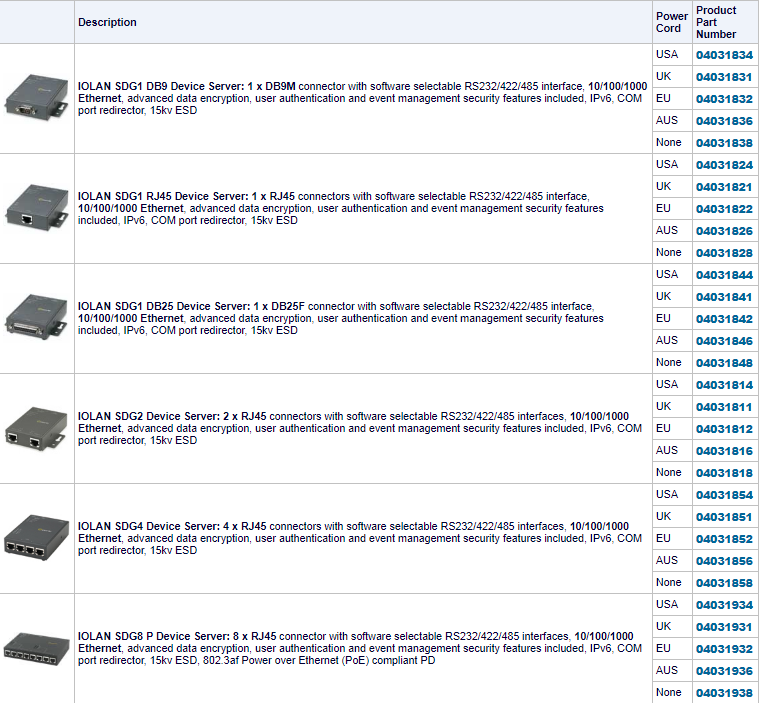

Number of Serial Ports	1, 2, 4 or 8
Serial Port Interface	Software selectable EIA232/422/485 on
Serial Port Interface	1 Port: DB9M, RJ45 or DB25F 2 Port: RJ45 4 Port: RJ45 8 Port: RJ45
Sun / Solaris	Sun / Oracle ‘Solaris? Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds	300bps to 230Kbps with customizable baud rate support
Data Bits	Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data
Parity	Odd, Even, Mark, Space, None
Flow Control	Hardware, Software, Both, None
Serial Port Protection	15Kv Electrostatic Discharge Protection (ESD)
Local Console Port	RS232 on Serial Port
Network	Autosensing 1000Base-T / 100Base-TX / 10Base-T Auto-MDIX
	Software selectable Ethernet speed 10/100/1000 Auto
	Software selectable Half/Full/Auto duplex
Ethernet Isolation	1.5Kv Magnetic Isolation
Power
Power Supply	120 V AC (USA), 230V AC (International) Wall Power Adaptor included
Power Supply Options	Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket, Power IN over serial cable
Nominal Input Voltage	12v DC / 24v DC
Input Voltage Range	9-30v DC
Power IOLAN over Serial	9-30v DC
Power External Device via Serial Port	+5v DC regulated, 1W max
Typical Power Consumption @ 12v DC (Watts)	1 Port: 1.9 2 Port: 2.0 4 Port: 2.0 8 Port: 2.7
Typical Power Consumption @ 12v DC (Watts)	Does not include power for devices connected to serial port
Indicators
LEDs	Power/Ready
	Network Link
	Network Link activity
	Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output (BTU/HR)	1 Port: 6.80 2 Port: 8.90 4 Port: 16.38 8 Port: 9.20
MTBF (Hours)	1 Port: 238,681 2 Port: 218,646 4 Port: 187,919 8 Port: 126,364
MTBF (Hours)	Calculation model based on MIL-HDBK-217-FN2 @ 30 °C
Operating Temperature	0C to 55C, 32F to 131F
Storage Temperature	-40C to 66C, -40F to 150F
Humidity	5 to 95% (non condensing) for both storage and operation.
Case	SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating	IP40
Mounting	Wall or Panel mounting, DIN Rail mounting kit optional
Product Weight and Dimensions
Weight	1 Port: 0.23 kg (0.50 lbs) 2 Port: 0.23 kg (0.50 lbs) 4 Port: 0.35 kg (0.77 lbs) 8 Port: 0.55 kg (1.20 lbs)
Dimensions (without mounting tabs)	1 Port: 90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) 2 Port: 90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) 4 Port: 112 x 82 x 28 (mm), 4.4 x 3.2 x 1.1 (in) 8 Port: 112 x 156 x 28 (mm), 4.4 x 6.1 x 1.1 (in)
Dimensions with mounting tabs	1 Port: 90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) 2 Port: 90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) 4 Port: 112 x 105 x 28 (mm), 4.4 x 4.2 x 1.1 (in) 8 Port: 113 x 179 x 28 (mm), 4.4 x 7.1 x 1.1 (in)
Packaging
Shipping Dimensions	260 x 170 x 70 (mm), 10.2 x 6.7 x 2.8 (in)
Shipping weight	1 Port: 0.49 kg (1.1 lbs) 2 Port: 0.49 kg (1.1 lbs) 4 Port: 0.66 kg (1.5 lbs) 8 Port: 1.30 kg (2.9 lbs)
Regulatory Approvals
Emissions	CFR47 FCC Part 15 Subpart B:2015
	ICES-003:2016 Issue 6:2016
	CISPR 32:2015/EN 55032:2015 (Class A)
	EN55011 (CISPR11)
	CISPR 16-2-3:2010/A2:2014
	EN61000-3-2:2014, Limited for Harmonic Current Emissions
	EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker
Immunity	CISPR 24:2010/EN 55024:2010
	EN61000-4-2: 2009 Electrostatic Discharge
	EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated
	EN61000-4-4: 2004 Fast Transients
	EN61000-4-5: 2006 Surge
	EN61000-4-6: 2009 RF Continuous Conducted
	EN61000-4-8: Power-Frequency Magnetic Field
	EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety	IEC 62368-1 and EN 62368-1:2014
Safety	CAN/CSA-C22.2 No. 62368-1-14 and UL 62368-1
Other	Reach, RoHS and WEEE Compliant
	ECCN - 5A992
	HTSUS Number: 8471.80.1000
	Perle Limited Lifetime Warranty

IOLAN RJ45 Serial Connector Pinout
RJ45 Socket	Pinout	Direction	EIA-232	EIA-422	EIA-485 Full Duplex	EIA-485 Half Duplex
	1		Power In (9-30V DC)	Power In (9-30V DC)	Power In (9-30V DC)	Power In (9-30V DC)
	2	in	DCD
	3	out	RTS	TxD+	TxD+	TxD+/RxD+
	4	in	DSR
	5	out	TxD	TxD-	TxD-	TxD-/RxD-
	6	in	RxD	RxD+	RxD+
	7		GND	GND	GND	GND
	8	in	CTS	RxD-	RxD-
	9	out	DTR
	10		Power out	Power out	Power out	Power out
Optional Perle adapters for use with straight thru CAT5 cabling

IOLAN DB9M Serial Connector Pinout
DB9M Socket	Pinout	Direction	EIA-232	EIA-422 Full Duplex	EIA-485 Full Duplex	EIA-485 Full Duplex
	1	in	DCD
	2	in	RxD	RxD+	RxD+
	3	out	TxD	TxD+	TxD+	DATA+
	4	out	DTR
	5		GND	GND	GND	GND
	6	in	DSR	RxD-	RxD-
	7	out	RTS
	8	in	CTS
	9			TxD-	TxD-	DATA-

IOLAN DB25F Socket Serial Connector Pinout
DB25F Socket	Pinout	Direction	EIA-232	EIA-422	EIA-485 Full Duplex	EIA-485 Half Duplex
	1		Shield	Shield	Shield	Shield
	2	in	RxD
	3	out	TxD
	4	in	CTS
	5	out	RTS
	6	out	DTR
	7		GND	GND	GND	GND
	8	in	DCD
	9		Power out	Power out	Power out	Power out
	12		Power In (9-30V DC)	Power In (9-30V DC)	Power In (9-30V DC)	Power In (9-30V DC)
	13			RTS-
	14			RxD+	RxD+
	15			RxD-	RxD-
	18			CTS+
	19			CTS-
	20	in	DSR
	21			TxD+	TxD+	DATA+
	22			TxD-	TxD-	DATA-
	25			RTS+
