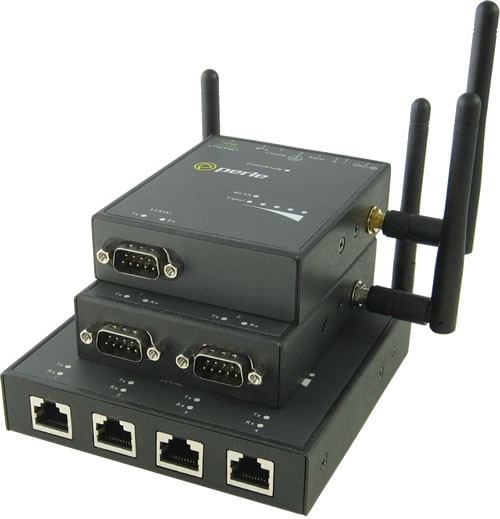

IOLAN SDG W
1、2、4个软件可选RS232/422/485 串行到无线WLAN (Wi-Fi )设备服务器,双频段IEEE 802.11 a,b,g,n,无线速度高达 150Mbps,数据加密、身份认证和事件管理的高级安全特性
• 无线速度高达 150Mbps
• 1、2或4个软件可选RS232/422/485串口接口
• 高速千兆以太网 (10/100/1000 Base-T)
• 用于数据加密、用户身份验证和事件管理的高级安全功能
• 无线基础设施和对等连接模式
All Images
1、2、4个软件可选RS232/422/485 串行到无线WLAN (Wi-Fi )设备服务器,双频段IEEE 802.11 a,b,g,n,无线速度高达 150Mbps,数据加密、身份认证和事件管理的高级安全特性
IPSec 标准被公认为通过 Internet 与远程专用网络进行通信的最安全方法,它在 OSI 模型的网络层提供了强大的 IP 数据包身份验证和加密。作为标准,它非常适合网络内的多供应商互操作,提供灵活性和为特定应用匹配正确解决方案的能力。
IOLAN 设备服务器插件
通过选择 Perle IOLAN 设备服务器,您可以放心,几乎任何带有串行 COM 端口的设备都可以与您所需的应用程序一起运行,就像直接连接时一样。万一 Perle IOLAN 设备服务器无法开箱即用地启用此功能,Perle 将使其工作。
Perle IOLAN 设备服务器利用客户可安装的“设备插件”成功地将其他解决方案失败的设备联网。立即申请免费工程咨询。
先进的知识产权技术
IOLAN 串行到以太网设备服务器系列支持下一代 IP (IPv6),可为组织提供投资保护,以满足这一快速发展的标准。
对与 IPv4 寻址方案兼容的 IPv6 的需求是由对更多 IP 地址的需求推动的。随着先进蜂窝网络的实施和推广,需要一种强大的方法来处理互联网上大量涌入的新 IP 可寻址设备。事实上,美国国防部已强制要求购买的所有设备都与 IPv6 兼容。此外,所有主要的操作系统,如 Windows、Linux、Unix 和 Solaris,以及路由器,都内置了对 IPv6 的支持。
因此,对于最终用户和集成商而言,选择采用 IPv6 标准的网络设备非常重要。已内置支持 IPv6 的 IOLAN 线是串行转以太网技术的最佳选择。
灵活可靠的串口转以太网连接
IOLAN SDG W 设备服务器非常适合将基于串行的 COM 端口、基于 UDP 或 TCP 套接字的应用程序无线连接到远程设备。 Perle 的 TruePort 重定向器为基于串行的应用程序提供固定的 TTY 或 COM 端口,从而能够以加密或明文模式与连接到 Perle IOLAN 的远程设备进行通信。您还可以通过 IP 网络在设备之间传输串行数据。
Perle 的设备管理软件可以更好地集中控制多个设备,从而最大限度地延长远程设备的正常运行时间。
所有 IOLAN SDG W 型号都通过强大的 15Kv ESD 保护电路增加了对静电放电和电源浪涌的保护,使组织能够放心地在现场使用该解决方案。
终身保修
所有 Perle IOLAN SDG 串行转以太网设备服务器均以业内最佳服务和支持为后盾,包括 Perle 独特的终身保修。自 1976 年以来,Perle 一直为其客户提供具有最高性能、灵活性和质量的网络产品。
Wi-Fi 是 Wi-Fi Alliance Corporation 的注册商标
Topology Support | |
---|---|
Serial to WLAN | |
Serial to ethernet | |
Ethernet to WLAN | |
Infrastructure ( to Access Point ) and secure peer to peer using SoftAP ( vs legacy “Ad-Hoc” ) | |
Serial Port Access | |
Connect directly using Telnet / SSH by port and IP address | |
Connect with EasyPort menu by Telnet / SSH | |
Use an internet browser to access with HTTP or secure HTTPS via EasyPort Web menu | |
Java-free browser access to remote serial console ports via Telnet and SSH | |
Ports can be assigned a specific IP address ( aliasing ) | |
Multisession capability enables multiple users to access ports simultaneously on 2 and 4 port models | |
Multihost access enables multiple hosts/servers to share serial ports | |
Accessibility | |
In-band ( Ethernet ) and out-of-band ( dial-up modem ) support | |
Dynamic DNS enables users to find a console server from anywhere on the Internet | |
Domain name control through DHCP option 81 | |
IPV6 and IPV4 addressing support | |
Availability | |
Primary/Backup host functionality enables automatic connections to alternate host(s) | |
Security | |
SSH v1 and v2 | |
PCI DSS Compliance: TLS v1.2, TLS v1.1, TLS v1.0, SSL v3.0, SSL v2.0 | |
SSL Server and SSL client mode capability | |
SSL Peer authentication | |
IPSec VPN : NAT Traversal, ESP authentication protocol | |
SSH ciphers: AES-CTR, AES-GCM and ChaCha20-poly1305 | |
SSL encryption: AES-GCM, key exchange ECDH-ECDSA, HMAC SHA256, SHA384 | |
Encryption: AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2) | |
Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96 | |
Key exchange: RSA, EDH-RSA, EDH-DSS, ADH | |
X.509 Certificate verification: RSA, DSA | |
Certificate authority (CA) list | |
Wireless LAN : WPA-PSK, WPA2-PSK & Enterprise ( EAP, PEAP, LEAP ), WEP, IEEE 802.11i, IEEE 802.1x supplicant | |
Local database | |
RADIUS Authentication, Authorization and Accounting | |
TACACS+ Authentication, Authorization and Accounting | |
LDAP, NIS, Kerberos Authentication | |
RSA SecureID-agent or via RADIUS Authentication | |
SNMP v3 Authentication and Encryption support | |
IP Address filtering | |
Disable unused daemons | |
Active Directory via LDAP | |
Terminal Server | |
Telnet | |
SSH v1 and v2 | |
Rlogin | |
Auto session login | |
LPD, RCP printer | |
MOTD - Message of the day | |
Serial machine to Ethernet | |
Tunnel raw serial data across Ethernet - clear or encrypted | |
Raw serial data over TCP/IP | |
Raw serial data over UDP | |
Serial data control of packetized data | |
Share serial ports with multiple hosts/servers | |
Virtual modem simulates a modem connection - assign IP address by AT phone number | |
Virtual modem data can be sent over the Ethernet link with or without SSL encryption | |
TruePort com/tty redirector for serial based applications on Windows, Linux, Solaris, SCO, HP UX, NCR UNIX and AIX. For a complete list of all the latest drivers click here | |
TrueSerial packet technology provides the most authentic serial connections across Ethernet ensuring serial protocol integrity | |
RFC 2217 standard for transport of serial data and RS232 control signals | |
Customizable or fixed serial baud rates | |
Plug-ins allow customer or Perle provided plug-ins for special applications | |
Software Development Kit ( SDK ) available | |
Serial encapsulation of industrial protocols such as ModBus, DNP3 and IEC-870-5-101 | |
ModBus TCP gateway enables serial Modbus ASCII/RTU device connection to ModBus TCP | |
Data logging will store serial data received when no active TCP session and forward to network peer once session re-established - 32K bytes circular per port | |
Console Management | |
Sun / Oracle Solaris Break Safe | |
Local port buffer viewing - 256K bytes per port | |
External port buffering via NFS, encrypted NFS and Syslog | |
Event notification | |
Manage AC power of external equipment using Perle RPS power management products | |
Clustering - central console server enables access ports across multiple console servers | |
Windows Server 2003/2008 EMS - SAC support GUI access to text-based Special Administrative Console | |
Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear | |
Remote Access | |
Dial, direct serial | PPP, PAP/CHAP, SLIP |
HTTP tunneling enables firewall-safe access to remote serial devices across the internet | |
Automatic DNS Update | Utilize DHCP Opt 81 to set IOLAN domain name for easy name management and with Dynamic DNS support , users on the Internet can access the device server by name without having to know its IP address. See Automatic DNS update support for details |
IPSEC VPN client/servers | Microsoft L2TP/IPSEC VPN client ( native to Windows XP) |
Microsoft IPSEC VPN Client ( native to Windows Vista ) | |
Cisco routers with IPSEC VPN feature set | |
Perle IOLAN SDS/STS and SCS models | |
OA&M ( Operations, Administration and Management ) | |
WiFi Protected Setup ( WPS ) | |
SNMP V3 - read and write, Perle MIB | |
Syslog | |
Perle Device Manager - Windows based utility for large scale deployments | |
Configurable default configuration | |
Installation Wizard | |
Set a Personalized Factory Default for your IOLANs | |
Protocols | |
IPv6, IPv4, TCP/IP, Reverse SSH, SSH, SSL, IPSec/IPv4, IPSec/IPv6, L2TP/IPSec, CIDR, RIPV2/MD5, ARP, RARP, UDP, UDP Multicast, ICMP, BOOTP, DHCP, TFTP, SFTP, SNTP, Telnet, raw, reverse Telnet, LPD, RCP, DNS, Dynamic DNS, WINS, HTTP, HTTPS, SMTP, SNMPV3, PPP, PAP/CHAP, SLIP, CSLIP, RFC2217, MSCHAP |
IOLAN SDG1/2 W | IOLAN SDG4 W | |
---|---|---|
Processor | 600Mhz ARM Processor | |
Memory | ||
RAM MB | 512M | |
Flash MB | 4G | |
Interface Ports | ||
Number of Serial Ports | 1 or 2 (DB9M) | 4 (RJ45) |
Serial Port Interface | Software selectable EIA232/422/485 | |
Back of product | ||
Sun / Solaris |
Sun / Oracle ‘Solaris? Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime |
|
Serial Port Speeds | 300bps to 230Kbps with customizable baud rate support | |
Data Bits |
Configurable for 5,6,7 or 8-bit protocol support Use TruePort to transparently pass 9-bit serial data |
|
Parity | Odd, Even, Mark, Space, None | |
Flow Control | Hardware, Software, Both, None | |
Serial Port Protection | 15Kv Electrostatic Discharge Protection (ESD) | |
Local Console Port | RS232 on Serial Port | |
Ethernet Network | Autosensing 1000-base-T / 100-base TX / 10-base T Auto-MDIX | |
Software selectable Ethernet speed 1000/100/10 | ||
Software selectable Half/Full/Auto duplex | ||
Ethernet Isolation | 1.5Kv Magnetic Isolation | |
Integrated Wireless Access | ||
Wireless LAN standards |
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11i |
|
Wireless Topology | Infrastructure (AP) and Peer to Peer- (SoftAP) modes | |
Wireless Radio | Dual-Band Radio ; 2.4GHz and 5GHz 20, 40Mhz SISO 2.4-GHz | |
Maximal Ratio Combining (MRC), Rx Diversity | 2.4 GHz MRC support for up to 1.4 Extended Range and 5 GHz Diversity Capable | |
Wireless Data Rates |
802.11n: 15, 30, 45, 60, 90, 120, 135, 150 Mbps (40Mhz channel @ 400ns Short GI) 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps |
|
Operational Frequency Range (MHz) |
2412 to 2484 MHz 4910 to 5825 MHz |
|
Modulation | DSSS, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM | |
Wireless Receiver Sensitivity in dBm |
802.11b/g (20 MHz channel)
802.11n (20 MHz channel) @ 400ns GI
802.11n (40 MHz channel) @ 400ns GI |
|
Wireless Transmit Power in dBm |
(20 MHz channel)
(40 MHz channel) |
|
Wireless Receiver Sensitivity in dBm |
802.11a
802.11n (20MHz channel) @ 400ns GI
802.11n (40MHz channel) @ 400ns GI |
|
Wireless Transmit Power in dBm |
802.11a
802.11n (HT20) @ 400ns GI
802.11n (HT40) @ 400ns GI |
|
Short Guard Interval (SGI) | 800ns and 400ns (Short Guard Interval) | |
Wireless Antenna | Dual-band 2.4/5.0 GHz, Omni-directional, Dipole antenna, 50 Ohm, 2 dBi, black with RP-SMA / RSMA finger tighten connector. Same antenna can be used as Main and/or Diversity for increased wireless performance, signal reliability, and extended range. | |
Wireless Security | WEP, WPA-PSK, WPA2-PSK & Enterprise (EAP, PEAP, LEAP), 802.11i (includes hardware-accelerated Advanced Encryption Standard [AES]), 802.1x supplicant | |
Fast Wireless Roaming | Ideal for mobile applications , the IOLAN can transparently roam between APs (Access Points) that share the same ESS (Extended Service Set) | |
WiFi Protected Setup (WPS V2) | A plug and play set up feature where the IOLAN can easily connect to a WPS capable central access point or a SoftAP compliant device supporting WPS | |
Power | ||
Power Supply | 120 V / 230V AC to 12vDC Wall Power Adaptor included. (Barrel connector, commercial-grade temperature – 0 to 60C) | |
2 x Power Supply Selection | Use external power 9-30v DC on standard 5.5mm x 9.5mm x 2.1mm barrel socket or 2-pin terminal block | |
Nominal Input Voltage | 12/24v DC | |
Input Voltage Range | 9-30v DC | |
Typical Power Consumption @ 24v DC (Watts) |
1 port : 3.96 2 port: 4.23 |
4.44 |
Indicators | ||
LEDs | Power/Ready | |
Network Link | ||
Network Link activity | ||
Serial: Transmit and Receive data per port | ||
Wireless Link | ||
Wireless Strength | ||
Environmental Specifications | ||
Heat Output (BTU/HR) |
1 port: 13.5 2 port: 14.4 |
15.1 |
MTBF (Hours)* |
1 port : 222,675 2 port : 206,430 |
170,530 |
Operating Temperature | -40° C to 75° C (-40 F to 167° F) | |
Storage Temperature | -40 C to 85 C (-40 F to 185 F) | |
Humidity | 5 to 95% (non-condensing) for both storage and operation. | |
Case | SECC Zinc plated sheet metal (1 mm) | |
Ingress Protection Rating | IP40 | |
Mounting | Wall or Panel mounting, DIN Rail mounting kit optional | |
Product Weight and Dimensions | ||
Weight | 0.25 kg (0.55 lbs) | 0.4 kg (0.88 lbs) |
Dimensions |
90 x 76 x 24 mm (3.5 x 3.0 x 0.9 in) |
110 x 111 x 24 mm (4.3 x 4.4 x 0.9 in) |
Packaging | ||
Shipping Dimensions |
26 x 17 x7 cm (10.2 x 6.7 x 2.8 in) |
26 x 17 x7 cm (10.2 x 6.7 x 2.8 in) |
Shipping Weight | 0.55 kg (1.21 lbs) | 0.71 kg (1.6 lbs) |
Regulatory Approvals | ||
Emissions | FCC Part 15, Subpart B, Class B | |
CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class B | ||
ICES-003, Issue 4, February 2004 (Canada) | ||
EN55022:1998 + A1:2000 + A2:2003 Class A | ||
EN61000-3-2 : 1995, Limits for Harmonic Current Emissions | ||
EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker | ||
Immunity | EN55024:1998 + A1:2001 + A2:2003 | |
EN61000-4-2: Electrostatic Discharge | ||
EN61000-4-3: RF Electromagnetic Field Modulated | ||
EN61000-4-4: Fast Transients | ||
EN61000-4-5: Surge | ||
EN61000-4-6: RF Continuous Conducted | ||
EN61000-4-8: Power-Frequency Magnetic Field | ||
EN61000-4-11: Voltage Dips and Voltage Interruptions | ||
Safety |
UL/EN/IEC 62368-1 CAN/CSA C22.2 No. 62368-1 |
|
IEC 60950-1 : 2005 (2nd Edition) + A1 : 2009 and EN 60950-1 : 2006 + A11 : 2009 |
||
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component) |
||
Wireless Regulatory Domain |
FCC/ICES ETSI TELEC Users are responsible for verifying approval for use in their individual countries. |
|
Radio Approvals |
FCC Part 15.247 Subpart C (2.4 Ghz) RSS-210 (Canada), RSS-Gen Issue 2 (Canada), ICES-003 Issue 4
ETSI EN 301 489-1 (V1.9.2) |
|
Frequency Bands |
FCC / ICES
ETSI
MIC (formally TELEC) |
|
Other | Reach, RoHS and WEEE Compliant | |
CCATS - G168387 | ||
ECCN - 5A992 | ||
HTSUS Number: 8517.62.0020 | ||
Perle Limted Lifetime Warranty |
IOLAN RJ45 Serial Connector Pinout | ||||||
---|---|---|---|---|---|---|
RJ45 Socket |
Pinout | Direction | EIA-232 | EIA-422 | EIA-485 Full Duplex | EIA-485 Half Duplex |
1 | in | DCD | ||||
2 | out | RTS | TxD+ | TxD+ | TxD+/RxD+ | |
3 | in | DSR | ||||
4 | out | TxD | TxD- | TxD- | TxD-/RxD- | |
5 | in | RxD | RxD+ | RxD+ | ||
6 | GND | GND | GND | GND | ||
7 | in | CTS | RxD- | RxD- | ||
8 | out | DTR | ||||
Optional Perle adapters for use with straight thru CAT5 cabling |
IOLAN DB9M Serial Connector Pinout | ||||||
---|---|---|---|---|---|---|
DB9M Socket |
Pinout | Direction | EIA-232 | EIA-422 Full Duplex | EIA-485 Full Duplex | EIA-485 Full Duplex |
1 | in | DCD | ||||
2 | in | RxD | RxD+ | RxD+ | ||
3 | out | TxD | TxD- | TxD- | TxD-/RxD- | |
4 | out | DTR | ||||
5 | GND | GND | GND | GND | ||
6 | in | DSR | ||||
7 | out | RTS | TxD+ | TxD+ | TxD+/RxD+ | |
8 | in | CTS | RxD- | RxD- | ||
9 |
Product Image | Description | Power Cord | Product Number |
---|---|---|---|

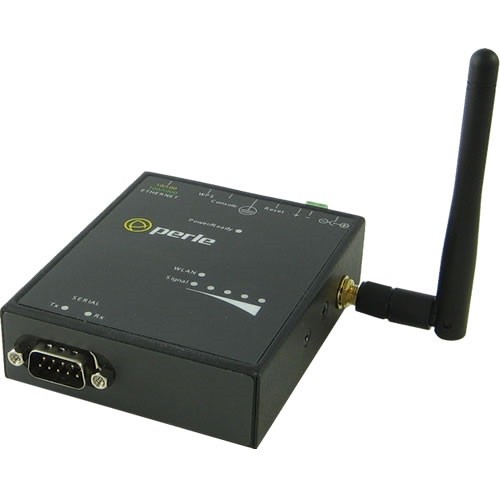

IOLAN SDG1 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 1 x DB9M connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD |
UK
EU
USA
SA
AUS
NONE
|
04031661
04031662
04031664
04031665
04031666
04031668
|
|

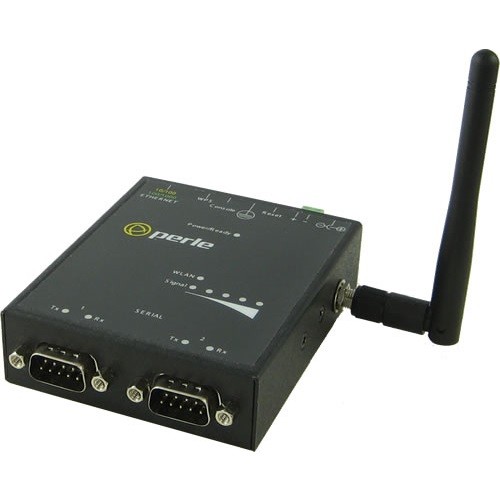

IOLAN SDG2 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 2 x DB9M connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD |
UK
EU
USA
SA
AUS
NONE
|
04031671
04031672
04031674
04031675
04031676
04031678
|
|

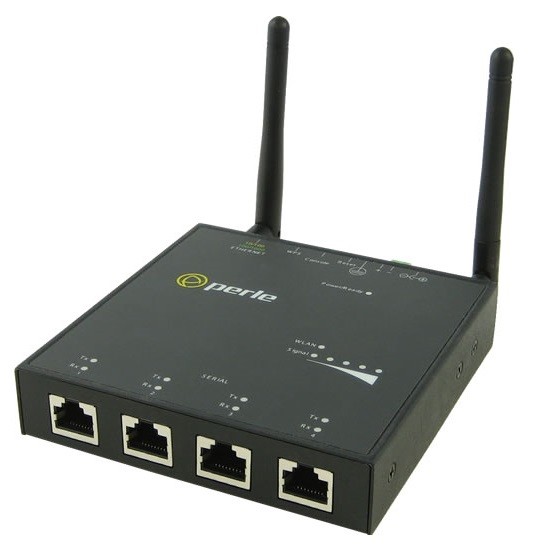

IOLAN SDG4 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 4 x RJ45 connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD |
UK
EU
USA
SA
AUS
NONE
|
04031681
04031682
04031684
04031685
04031686
04031688
|
